Piezoelectric Plates: Engineering Guide for Ultrasonic Systems

Published Updated By YJ Piezo Engineering TeamTechnical review by YJ Piezo Engineering Team4,620 words24 min read

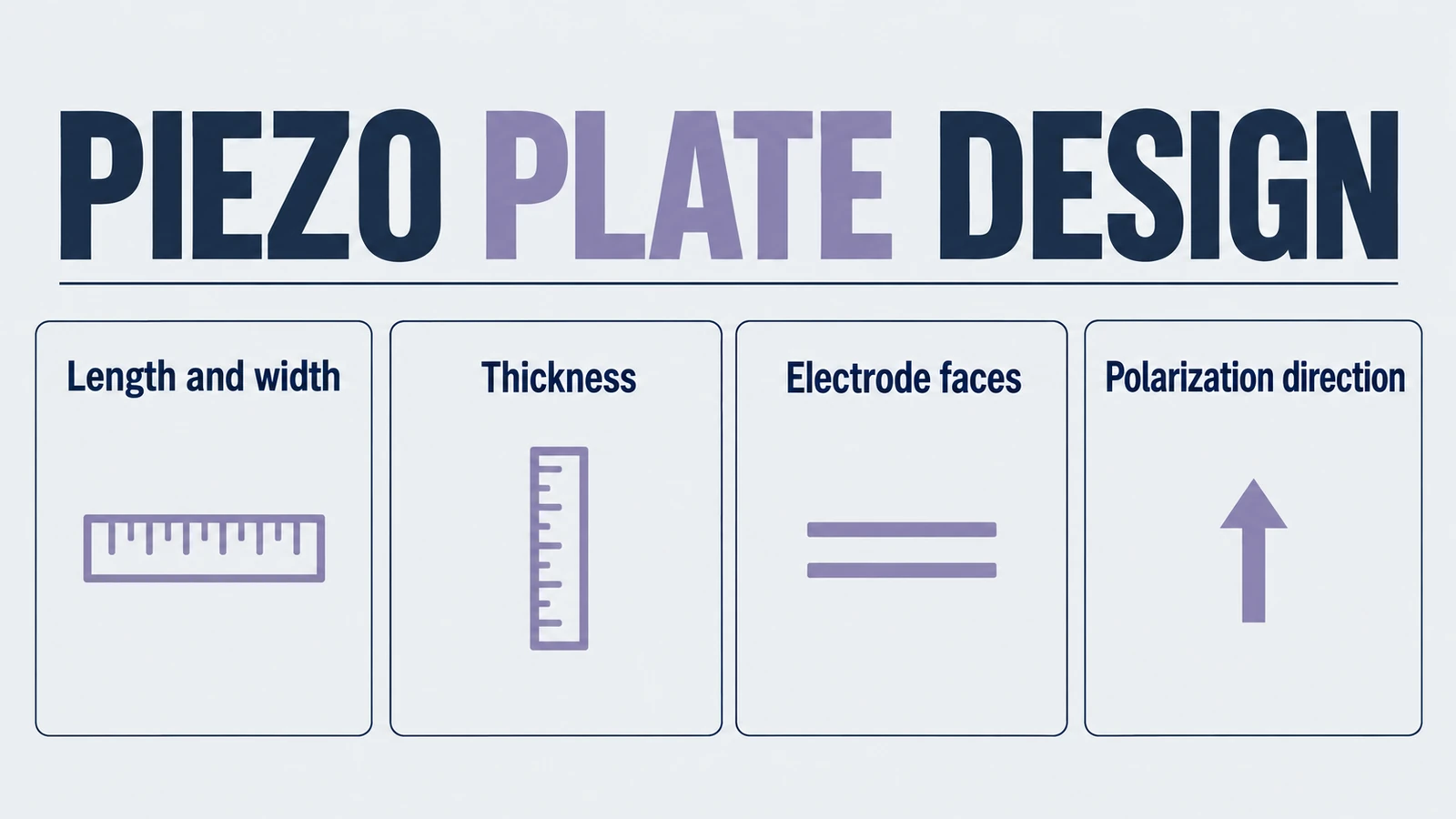

Infographic: piezo plate design, covering Length and width, Thickness, Electrode faces, Polarization direction.
Length and width · Thickness · Electrode faces · Polarization direction

Introduction: The Unseen Engine of Ultrasonic Technology

From the first black-and-white glimpse of an unborn child to the silent, deep-sea mapping of the ocean floor, ultrasonic technology has become an invisible yet widely used force in the modern world. It supports the structural integrity of aircraft, cleans delicate surgical instruments with microscopic precision, and enables naval vessels to navigate the darkest depths. At the heart of every one of these technological marvels lies a single, unassuming component: the piezoelectric plate. This small ceramic element is the engine that drives the entire system, possessing the remarkable ability to convert electrical signals into powerful mechanical vibrations and, just as importantly, to convert returning mechanical vibrations back into electrical data.

Engineering decision focus: Map application requirements to plate material, thickness, and integration constraints early to avoid late-stage redesign.

The performance, precision, and reliability of any ultrasonic device—be it a medical imaging system, a high-power industrial cleaner, or a high-reliability sonar array—are directly and inextricably linked to the quality and specifications of its core piezoelectric plate. An off-the-shelf component can deliver functionality, but only a precisely engineered plate can unlock a device's true potential. This article serves as a definitive guide for engineers, product designers, and innovators seeking to harness the full power of ultrasonic technology. It will explore the fundamental science behind piezoelectric plates, detail their critical role in four major application areas, and provide a detailed roadmap for customizing these components to achieve optimal performance in any application. By understanding the intricate relationship between material science, geometric design, and application requirements, you can make informed decisions that elevate your technology from functional to exceptional.

Product path for this search intent

Match the article topic to the right YJ Piezo product page

Use this article when the choice is not just a shape, but a material tradeoff between sensitivity, loss, coupling, stability, and operating field. For "Piezoelectric Plates: Engineering Guide for Ultrasonic Systems", the practical value is in turning the topic into a measurable selection or sourcing decision.

Section 1: The Fundamental Principle: How Piezoelectric Plates Convert Pressure to Power

The entire field of ultrasonics is built upon a unique property of certain crystalline materials known as the piezoelectric effect. This phenomenon is not a one-way process but a bidirectional conversion of energy that allows a single piezoelectric plate to function as both a transmitter and a receiver of mechanical energy.

1.1 The Piezoelectric Effect: A Two-Way Street

The term "piezoelectricity" literally translates to "electricity resulting from pressure". This effect was first discovered in 1880 by French physicists Jacques and Pierre Curie, who found that applying mechanical stress to certain crystals, such as quartz, generated an electrical charge on their surfaces. This foundational discovery revealed a fundamental link between the mechanical and electrical properties of matter.

Direct Piezoelectric Effect (Sensor Mode)

The direct piezoelectric effect is the generation of an electric charge in response to applied mechanical stress. When a piezoelectric plate is squeezed, pressed, or subjected to a pressure wave (like a sound echo), its internal crystalline structure is deformed. This deformation displaces the centers of positive and negative charge within the material's crystal lattice, creating an electrical dipole. The collective effect of these microscopic dipoles results in a net electrical polarization, producing a measurable voltage across the electrodes on the plate's surface. The magnitude of this voltage is directly proportional to the applied force or pressure. This principle is the basis for all piezoelectric sensors, including microphones, pressure sensors, accelerometers, and the receiving function of ultrasonic transducers.

Inverse Piezoelectric Effect (Actuator Mode)

Conversely, when an external electric field is applied across a piezoelectric plate, the material physically deforms—it either expands or contracts. This is known as the inverse piezoelectric effect. The alignment of the material's internal dipoles with the applied electric field causes a change in the overall dimensions of the plate. If an alternating current (AC) voltage is applied, the plate is forced to expand and contract rapidly at the same frequency as the electrical signal. This high-frequency vibration pushes against the surrounding medium (air, water, or tissue), generating the high-frequency pressure waves we know as ultrasound. This actuator mode is the engine behind ultrasonic transmitters, motors, and medical ultrasound instruments.

1.2 The Heart of the Matter: Piezoelectric Materials

While the piezoelectric effect exists in natural crystals like quartz, modern ultrasonic applications overwhelmingly rely on engineered materials that offer superior performance and manufacturability. These materials can be broadly classified into ceramics, single crystals, and polymers.

The most dominant material in the industry is a type of piezoelectric ceramic known as Lead Zirconate Titanate, or PZT. PZT is a polycrystalline ceramic, meaning it is composed of a mass of tiny, individual crystallites. It is highly favored for its strong piezoelectric properties, chemical inertness, high-temperature resistance, and the relative ease with which it can be manufactured into a vast array of shapes and sizes, such as piezoelectric plates, piezoelectric discs, piezoelectric rings, and piezoelectric tubes. Furthermore, the properties of PZT can be precisely tailored by adjusting the ratio of lead zirconate to lead titanate and by adding other chemical dopants, allowing for formulations optimized for specific applications.

Beyond PZT, other important material classes include:

  • Single Crystals: Materials like PMN-PT (Lead Magnesium Niobate-Lead Titanate) are grown as a single, a continuous crystal lattice. They offer exceptionally high electromechanical coupling coefficients (k > 90%) and piezoelectric constants, leading to superior sensitivity and bandwidth. These premium materials are often reserved for high-end medical imaging arrays where ultimate performance is required.
  • Polymers: Materials like Polyvinylidene Fluoride (PVDF) are flexible, lightweight, and have a low acoustic impedance that matches well with water and human tissue. While their piezoelectric effect is generally weaker than that of ceramics, they possess a very high voltage sensitivity (piezoelectric voltage constant g₃₃), making them excellent for certain types of sensors, hydrophones, and flexible transducers.
  • Lead-Free Ceramics: In response to global environmental regulations like RoHS, which restrict the use of lead, significant research has gone into developing lead-free alternatives. Materials based on Bismuth Sodium Titanate (BNT) and Potassium Sodium Niobate (KNN) are emerging as viable, environmentally friendly substitutes for PZT in many applications, particularly in power ultrasonic transducers.

1.3 From Powder to Poled Plate: The Manufacturing Process

The creation of a high-performance PZT piezoelectric plate is a multi-stage process that transforms raw metal oxides into a precisely engineered electromechanical component. The process begins by mixing fine powders of lead, zirconium, and titanium oxides in specific proportions. This mixture is then heated, or calcined, to form a uniform PZT powder.

This powder is then pressed into the desired shape (e.g., a plate) and subjected to a high-temperature firing process called sintering. During sintering, the individual PZT particles fuse together, forming a dense, hard, and chemically stable polycrystalline ceramic structure. After sintering, the ceramic plate is precisely machined to its final dimensions and electrodes, typically made of silver or nickel, are applied to its surfaces.

At this stage, however, the ceramic plate exhibits no net piezoelectric effect. The microscopic crystal domains within the material are randomly oriented, and their individual piezoelectric effects cancel each other out. The final, critical step is poling. The plate is heated to a temperature just below its Curie point (the temperature at which it loses its ferroelectric properties) and a strong, direct current (DC) electric field is applied across the electrodes. This intense field forces the randomly oriented domains to align themselves as much as possible with the field. When the plate is cooled with the field still applied, this alignment becomes locked in, creating a permanent remanent polarization. It is this engineered, permanent internal dipole moment that gives the plate its powerful and predictable piezoelectric properties. The quality of the poling process is a direct and critical determinant of the plate's final performance. A poorly poled plate will have a weak piezoelectric effect, leading to a weak ultrasonic signal, poor sensitivity, and ultimately, a poorly performing device. This underscores the importance of partnering with a manufacturer that possesses deep expertise in material processing and quality control.

Section 2: A World of Applications: Piezoelectric Plates in Action

The dual nature of the piezoelectric effect allows these plates to be the core transducer in a vast range of ultrasonic devices. However, the specific demands of each application dictate a unique set of ideal properties for the piezoelectric plate. A component optimized for one task may be entirely unsuitable for another, highlighting a fundamental trade-off between sensitivity and power handling that governs material selection.

2.1 Medical Imaging & Device Applications: The Quest for Precision and Clarity

In the medical field, piezoelectric plates are the heart of ultrasound transducers used for diagnostic imaging, blood flow monitoring, and advanced device-level procedures.

  • Application & Mechanism: In a typical handheld ultrasound probe, an array of tiny piezoelectric plates emits short, high-frequency ultrasonic pulses into the body (inverse effect). These pulses travel through tissue and reflect off organ boundaries, blood cells, and other internal structures. The same piezoelectric plates then detect the faint returning echoes, converting their mechanical pressure back into electrical signals (direct effect). A computer processes the timing and intensity of these millions of echoes to construct a detailed, real-time image of the body's interior. In focused ultrasound equipment, larger or specially shaped piezoelectric plates may be used to concentrate acoustic energy, with acoustic output and use-case validation handled at the finished-device level.
  • Key Requirements:
    • High Sensitivity: The ability to detect extremely weak echoes is paramount for image clarity and resolution. Faint signals from deep tissues must be accurately captured to create a detailed image. This requires materials with a high piezoelectric charge constant (d₃₃), which quantifies the amount of charge generated per unit of force, and a high electromechanical coupling factor (k), which describes mode-specific reversible electromechanical coupling under defined boundaries, rather than device power efficiency. Materials known as "soft" PZTs (e.g., PZT-5A and PZT-5H) are engineered specifically for this high-sensitivity performance.
    • Wide Bandwidth: To achieve good axial resolution (the ability to distinguish two objects close together along the beam's path), the transducer must emit a very short pulse. This requires a wide frequency bandwidth. While single-plate ceramics have a narrow bandwidth, this is often achieved by using piezoelectric composites. These materials combine PZT pillars with a polymer filler, which dampens the ceramic's resonance, widening the bandwidth.
    • Acoustic Impedance Matching: A significant challenge in medical ultrasound is transmitting sound energy from the high-impedance ceramic plate into the low-impedance human tissue. A large mismatch causes most of the energy to reflect off the skin. Piezoelectric composites, with their polymer matrix, have a lower acoustic impedance than pure ceramics, providing a better match to tissue and improving energy transmission.
    • High Frequency: For imaging superficial structures like the eye or skin, very high resolution is needed. This is achieved using high-frequency ultrasound (often > 20 MHz), which requires manufacturing extremely thin and delicate piezoelectric plates, as frequency is inversely proportional to thickness.

2.2 Industrial Ultrasonic Cleaning: Unleashing High-Power Cavitation

In stark contrast to the delicate sensitivity required for medical imaging, industrial ultrasonic cleaning demands raw, sustained power to scour contaminants from surfaces in manufacturing, aerospace, and healthcare settings.

  • Application & Mechanism: High-power piezoelectric plates, often called transducers, are bonded to the bottom or sides of a stainless steel cleaning tank. Driven by a powerful generator, these plates vibrate with intense amplitude at frequencies typically between 25 and 70 kHz. This intense vibration is transferred to the cleaning liquid (water or a solvent), causing the rapid formation and collapse of gas/vapor-containing cavitation bubbles—a phenomenon called cavitation. The implosion of each bubble releases a tremendous amount of localized energy, creating a powerful scrubbing action that dislodges dirt, grease, and other contaminants from even the most intricate and hard-to-reach surfaces.
  • Key Requirements:
    • High Power Handling and Efficiency: The piezoelectric plate must operate continuously under a high electrical drive without degrading or failing. This requires "hard" PZT materials (e.g., PZT-4, PZT-8), which are specifically formulated to handle high mechanical stress and electrical fields. A critical parameter for this is a high mechanical quality factor (Qₘ). Qₘ is the inverse of mechanical loss; a high value indicates that very little energy is lost as heat due to internal friction during vibration. This helps ensure that the maximum amount of electrical energy is converted into useful acoustic power.
    • Low Dielectric Loss: Under high AC drive conditions, materials can dissipate significant energy as heat. A low dielectric loss tangent (tan δ) is essential to minimize this self-heating, preventing performance degradation and potential failure.
    • Thermal Stability: The continuous high-power operation generates substantial heat. The piezoelectric material must have a high Curie Temperature (Tc), the temperature at which it permanently loses its poled piezoelectric properties. Materials like APC 840 or APC 841 are chosen for their high Curie points to avoid thermal depolarization during operation.
    • Durability and Longevity: The plates and the adhesive bonds that attach them to the tank must withstand constant, high-amplitude mechanical vibrations for thousands of hours of operation. Modern engineered adhesives and robust transducer designs are critical for long-term reliability.

2.3 Sonar & Hydroacoustics: Navigating and Mapping the Depths

Sonar (Sound Navigation and Ranging) systems use piezoelectric plates to send and receive sound waves through water for a wide range of applications, from military submarine detection and seafloor mapping to commercial fish finding and controlling autonomous underwater vehicles (AUVs).

  • Application & Mechanism: A sonar transducer, or an array of them, emits a powerful acoustic pulse, often called a "ping," into the water (inverse effect). This sound wave travels outward until it strikes an object (like a submarine, a school of fish, or the seabed), at which point it is reflected. The same transducer or a separate hydrophone then "listens" for the returning echo (direct effect). By measuring the time it takes for the echo to return, the system can calculate the distance to the object. By using arrays of transducers, sonar systems can also determine the object's size, shape, speed, and direction, creating a detailed acoustic "image" of the underwater environment.
  • Key Requirements:
    • High Acoustic Power Output: To detect objects at long ranges, the initial "ping" must be extremely powerful to overcome attenuation as it travels through water. This requires large, robust transducers, often constructed from stacks of piezoelectric plates, made from high-power "hard" PZT materials (frequently designated as Navy Types I or III) capable of handling immense electrical drive signals.
    • High Receiving Sensitivity: The returning echo can be incredibly weak, especially from distant or small objects. The receiving element must therefore be highly sensitive to faint pressure changes. This calls for a material with a high piezoelectric voltage constant (g₃₃), which measures the strength of the electric field produced per unit of applied mechanical stress. A high g₃₃ helps ensure that even a weak echo produces a detectable voltage signal.
    • Low-Frequency Operation: High-frequency sound is absorbed quickly in water, limiting its range. To achieve long-range detection (over several kilometers), sonar systems must operate at lower frequencies (typically 10-50 kHz). For a bare thickness-mode element, resonance is inversely related to thickness. Low-frequency sonar can instead use radial/flexural modes or a ceramic/metal assembly, so it does not universally require a very thick bare plate, which presents significant manufacturing challenges related to uniform poling and mechanical integrity.
    • Durability in Harsh Environments: Sonar transducers must withstand the crushing pressures of the deep sea, saltwater corrosion, and mechanical shock. This necessitates robust housing, waterproof encapsulation, and highly reliable piezoelectric components.

2.4 Non-Destructive Testing (NDT): Ensuring Structural Integrity

Non-Destructive Testing (NDT) uses ultrasonic waves to inspect the integrity of critical materials and components in industries like aerospace, automotive, and construction without causing any damage.

  • Application & Mechanism: An NDT transducer containing a piezoelectric plate is placed in contact with the material being tested. It sends a high-frequency ultrasonic pulse into the part (inverse effect). This wave travels through the material and reflects off any interface, such as the back wall of the component or, more importantly, an internal flaw like a crack, void, or delamination. The transducer then detects these reflected waves (direct effect). An operator analyzes the timing and amplitude of the echoes on a screen to identify, locate, and characterize defects that would be invisible to the naked eye.
  • Key Requirements:
    • High Frequency for High Resolution: The ability to detect very small defects is critical for safety in applications like aircraft wing inspection. The resolution of an ultrasonic test is directly related to the wavelength of the sound; shorter wavelengths (higher frequencies) can detect smaller flaws. NDT transducers often operate in the megahertz range, requiring very thin, precisely manufactured piezoelectric plates.
    • Wide Bandwidth: Similar to medical imaging, a wide bandwidth is desirable in NDT. It allows for the generation of short, sharp pulses which improve resolution and enables more sophisticated signal analysis techniques for better material characterization and flaw sizing.
    • Consistency and Repeatability: NDT is a cornerstone of quality control and safety assurance. The piezoelectric plates used in NDT probes must exhibit extremely consistent and repeatable performance from one batch to the next. Any variation in the transducer's output could lead to a missed flaw or a false reading, with potentially serious consequences. This places a premium on manufacturers with rigorous quality control and material consistency.
    • Versatility of Form Factors: Components to be inspected often have complex geometries. This requires a wide variety of transducer types, including angle beam, phased array, and immersion probes. A piezoelectric plate supplier must be capable of producing custom shapes and sizes to support the fabrication of these specialized NDT tools.

Section 3: Engineering the Perfect Fit: A Guide to Customizing Piezoelectric Plates

Achieving peak performance in an ultrasonic device is rarely possible with a generic, off-the-shelf component. True optimization requires a piezoelectric plate that is custom-engineered to the specific demands of the application. This involves a careful consideration of material formulation, geometric design, frequency tuning, and electrical interfacing. This section serves as a practical guide for engineers and designers to navigate these critical customization parameters.

3.1 Material Formulation: The DNA of Performance

The foundation of any custom piezoelectric plate is its material composition. By precisely controlling the chemistry of the PZT ceramic, manufacturers can fine-tune its properties along a spectrum from "soft" (high sensitivity) to "hard" (high power).

  • Soft PZT (e.g., PZT-5A, PZT-5H / Navy Type II, VI): These formulations are characterized by high sensitivity, meaning they are very efficient at converting energy in both directions. They exhibit a high piezoelectric charge constant (d₃₃), a high electromechanical coupling factor (k), and a high dielectric permittivity. This makes them the ideal choice for applications where signal detection is paramount, such as the receiving elements in medical imaging transducers, sensitive hydrophones, and precision piezoelectric actuators. However, they typically have a lower mechanical quality factor (Qₘ) and a lower Curie temperature, making them less suitable for high-power, continuous-wave applications.
  • Hard PZT (e.g., PZT-4, PZT-8 / Navy Type I, III): These materials are engineered for robustness and power handling. They are characterized by a high mechanical quality factor (Qₘ), which minimizes heat generation; a low dielectric loss tangent (tan δ), which reduces electrical losses under high drive; a high coercive field, which resists depolarization; and a high Curie temperature (Tc), ensuring thermal stability. These properties make them the common choice for high-power transmitting applications like industrial ultrasonic cleaners, sonar projectors, and ultrasonic welding transducers. For instance, materials with an ultra-low loss tangent of 0.004 or less are specifically designed for maximum efficiency and minimal power loss in these demanding roles.

The selection between a soft and hard PZT is the first and most critical decision in the design process, as it defines the fundamental capabilities of the final device.

3.2 Geometric Design: Shape Dictates Function

The physical shape of the piezoelectric plate is fundamental to how it projects and receives acoustic energy. Advanced ceramic machining allows for a wide variety of forms beyond simple plates, each suited to different functions.

  • Discs and Plates: These are the most common geometries. Their diameter or width determines the radial mode resonant frequency, while their thickness determines the thickness mode frequency. They are the building blocks for most standard transducers, from NDT probes to cleaning transducers.
  • Rings and Tubes: These shapes are used in applications that require a central aperture, such as flow-through bubble detectors or certain medical devices. They can also be used to create a 360-degree radial radiation pattern, which is useful for acoustic modems or omnidirectional hydrophones.
  • Spheres and Hemispheres: For applications requiring uniform, omnidirectional sound transmission or reception, such as underwater location beacons or certain sonar systems, spherical or hemispherical elements are ideal. They can transmit high power in all directions simultaneously.
  • Custom Geometries: The possibilities extend to more complex shapes. For example, piezoelectric plates can be machined into curved, bowl-like shapes to create a naturally focused beam in focused ultrasound equipment, reducing or changing the need for an acoustic lens. They can also be diced into thousands of tiny elements to form a phased array for advanced medical imaging.

3.3 Frequency Tuning: The Critical Role of Thickness

One of the most fundamental relationships in transducer design is that the thickness of a piezoelectric plate is inversely proportional to its fundamental thickness-mode resonant frequency. A thinner element vibrates faster, producing a higher frequency, while a thicker element vibrates more slowly, producing a lower frequency.

This principle has profound implications for manufacturing and customization. A 40 kHz cleaner may use a ceramic/metal stack or other loaded geometry; its frequency is not necessarily the bare plate’s half-wave thickness resonance. In contrast, to produce a 10 MHz transducer for high-resolution medical imaging, the piezoelectric plate must be precision-machined and lapped to be extremely thin—often just a fraction of a millimeter. These ultra-thin plates are very fragile and require specialized manufacturing capabilities and stringent quality control to maintain tight thickness tolerances (specified from the required frequency tolerance and process capability) and prevent damage during production. Therefore, specifying the desired operating frequency is one of the most direct ways to define the physical dimensions of the custom plate.

3.4 Electrodes and Wiring: Interfacing with Electronics

The electrodes are the conductive layers applied to the plate's surfaces that allow the driving voltage to be applied and the generated charge to be collected. The choice of material (e.g., silver, gold, nickel) and application method (e.g., screen printing, sputtering) can affect the component's durability, conductivity, and cost.

For multi-layer components like benders or stacks, the wiring configuration is also a key customization parameter. The layers can be wired for either series or parallel operation, a choice that must be matched to the design of the driver electronics.

  • Series Operation (2 wires): In this configuration, the voltage is applied across the entire stack. This requires a higher driving voltage but draws less current. The output voltage in sensor mode is higher, but the output charge is lower.
  • Parallel Operation: Parallel-connected layers share the terminal voltage and their capacitances/charges add. A stack can present two external terminals. Some bimorph electrode/control arrangements expose a center electrode as a third lead; three wires are not a universal requirement for parallel stacks. Specify the actual schematic.

3.5 The Summary Table: Matching Specifications to Applications

To simplify the complex process of specifying a custom piezoelectric plate, the following table serves as a diagnostic tool for engineers. It connects common application requirements to the critical material properties and design parameters needed to achieve them, and illustrates how a specialized supplier can provide the necessary solutions.

Application Key Performance Requirement Critical Material Properties & Parameters Custom Solutions
Medical Imaging High Sensitivity, High Resolution, Good Impedance Match High d₃₃, High kt, Low Acoustic Impedance, Wide Bandwidth Custom PZT-5H type formulations, precision lapping for high frequency, 1-3 composite fabrication.
Industrial Cleaning High Power Efficiency, Low Heat Generation, Durability High Qₘ, High Tc, Low tan δ (dielectric loss) Ultra-low loss PZT-4/PZT-8 type materials, robust electrode design, large-format plates.
Sonar / Hydroacoustics High Acoustic Output, Durability in Harsh Environments High g₃₃ (for passive), High Power Handling, Low Frequency Resonance Specialized Navy Type I/II/III PZT, large-scale and stacked designs, custom shapes (spheres, tubes).
Non-Destructive Testing High Resolution, Wide Bandwidth, Repeatability High Frequency (Thinness), High kt, Excellent Batch-to-Batch Consistency Precision micro-machining, thickness tolerances derived from the frequency and acceptance requirements, planned material consistency.

This table acts as a bridge, guiding a technical user from a high-level performance goal (e.g., "I need better image resolution") to a specific material requirement (e.g., "I need a material with a high d₃₃ and the ability to be machined very thin") and finally to a tangible manufacturing solution. It translates an engineering problem into a set of specifications that a capable supplier can meet.

Section 4: Partnering for Innovation: Why Your Choice of Piezoelectric Plate Supplier Matters

The preceding sections have established a clear and compelling truth: the performance of a multi-million dollar medical imaging system, a high-reliability naval sonar array, or a high-throughput industrial production line can hinge on the quality and precise customization of a small ceramic plate. While a standard component may suffice for a prototype, achieving competitive advantage, long-term reliability, and optimal performance in a finished product demands a solution engineered for its specific purpose. The choice of a piezoelectric plate supplier is therefore not merely a procurement decision; it is a strategic partnership that can define the success of a project.

A truly valuable partner in this space moves beyond the role of a simple component supplier to become a material science expert and a collaborative design consultant. This level of partnership is built on three pillars:

  • Material Mastery: The ability to not just supply, but to develop piezoelectric materials is paramount. An expert supplier can create custom PZT formulations tailored to unique performance targets. This includes engineering ultra-low loss materials with a loss tangent (tan δ) as low as 0.004 for high-power cleaning and sonar applications, ensuring maximum energy efficiency and minimal heat generation. It also includes developing materials with superior sensitivity and shear strain response (d₁₅ up to 950 pC/N) for the most demanding medical imaging and sensor applications, enabling strong clarity and precision.
  • Manufacturing Excellence: Deep material knowledge must be paired with state-of-the-art manufacturing capabilities. This involves precision machining to achieve tight geometric and thickness tolerances, which is essential for frequency control. It also requires advanced electrode application techniques and, most importantly, rigorous quality control processes. Ensuring exceptional batch-to-batch consistency is important for critical applications in medicine and NDT, where reliable and repeatable performance is a matter of safety and efficacy.
  • Collaborative Partnership: The ideal supplier works alongside a client's engineering team, acting as an extension of their R&D department. This collaborative approach helps ensure that the optimal material is selected and that the plate's design is well-integrated with the overall transducer and system architecture. This partnership should span the entire product lifecycle, from initial concept and prototyping through to scalable, high-volume production.

Ultimately, selecting a supplier is about choosing a partner with the expertise to translate a complex set of application requirements into a tangible, high-performance piezoelectric component that provides a distinct competitive edge in the market.

Build Your Next-Generation Ultrasonic Device

The journey from a powerful concept to a market-leading ultrasonic device begins with the right foundation. The performance, reliability, and innovation of your application depend on the quality of its core piezoelectric components. Partner with an expert who understands the intricate science and precision engineering required to unlock your technology's full potential.

  • For engineers with defined parameters and ready to move forward, Request a Quote on a custom piezoelectric plate tailored to your exact specifications.
  • For designers and R&D teams in the early stages of development, Schedule a Consultation with our engineering team to explore material options, discuss design possibilities, and leverage our deep expertise in material science.
  • To learn more about how our advanced PZT materials and custom solutions can elevate the performance of your next project, contact us today. Drop us an email for the fastest response at business@szyujie.com.

Related Engineering Reading

Engineering decision notes

PZT material and ceramic selection

Use this article when the choice is not just a shape, but a material tradeoff between sensitivity, loss, coupling, stability, and operating field. For "Piezoelectric Plates: Engineering Guide for Ultrasonic Systems", the practical value is in turning the topic into a measurable selection or sourcing decision.

YJ Piezo coordinates PZT ceramic projects with manufacturing support, so material formulation, sintering, polarization, electrode process, and outgoing inspection can be reviewed against the final application.

Selection checks

  • Separate sensing needs from high-power actuation needs before comparing d33 or coupling values.
  • Check dielectric loss, Qm, Curie temperature, aging behavior, and operating field against the real duty cycle.
  • Confirm whether the application needs standard PZT grades or a custom formulation and geometry.

Failure risks

  • Choosing only the highest d33 can create heat, drift, or depolarization risk in power ultrasonics.
  • A ceramic that performs well in free measurement can fail once bonded, clamped, or loaded.
  • Material substitutions without batch testing can change capacitance, resonance, and system tuning.

RFQ details

  • Is the part used for sensing, actuation, atomization, cleaning, welding, or measurement?
  • What field strength, temperature, duty cycle, and mechanical load will the ceramic see?
  • Which values must be controlled: d33, capacitance, resonance, impedance, Qm, or dimensional tolerance?
