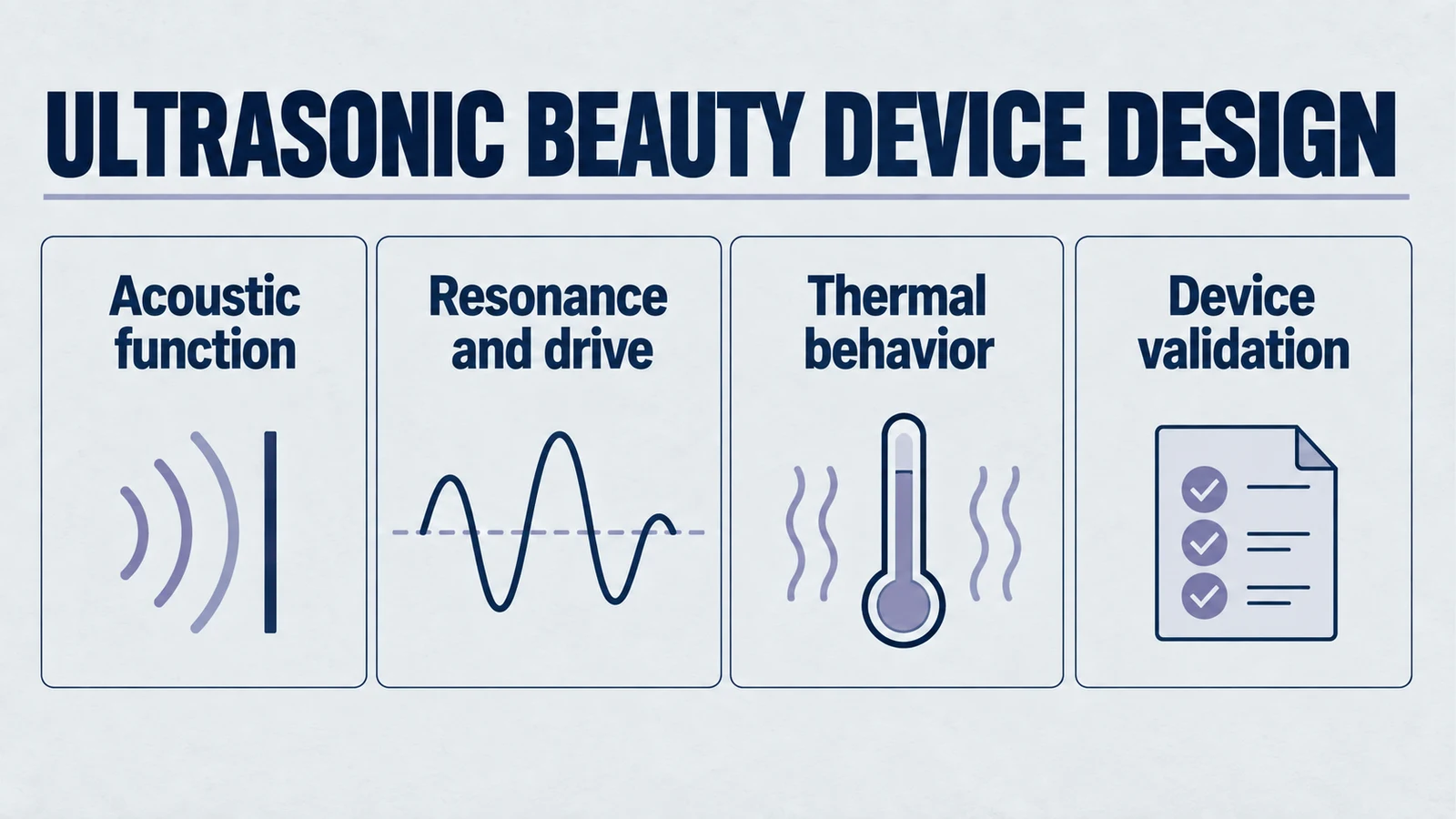

ultrasonic beauty device design: Acoustic function, Resonance and drive, Thermal behavior, Device validation.
Acoustic function · Resonance and drive · Thermal behavior · Device validation

1. Introduction: The Convergence of Acoustics, Materials Science, and Dermatology

The contemporary landscape of aesthetic medicine and personal care has been fundamentally reshaped by the miniaturization of industrial technologies. Among the most pervasive yet least understood of these innovations is the ultrasonic skin scrubber, frequently marketed as the "ultrasonic spatula" or "skin peeling device." To the layperson, these handheld wands appear to be simple vibrating blades that atomize water and exfoliate the skin through rapid oscillation. However, beneath the sleek consumer molding lies a sophisticated electromechanical system rooted in the complex physics of piezoelectricity, the materials science of ferroelectric ceramics, and the fluid dynamics of acoustic cavitation.

Electrical drive produces mechanical motion. Liquid motion, surface breakup and acoustic exposure can produce measurable effects, but finished-device cleaning, permeability, regeneration or therapeutic claims require specific experimental/clinical evidence. A plausible piezoelectric mechanism alone does not establish those consumer outcomes.

This report provides a technical analysis of ultrasonic beauty devices. It dissects the crystallographic properties of the active ceramic elements, typically lead zirconate titanate (PZT); the engineering of the acoustic waveguides (horns); the electronic drive topologies required to maintain resonance; and the physical mechanisms, specifically inertial cavitation and acoustic streaming, that influence device performance. It also distinguishes between professional instruments and low-cost consumer approximations, highlighting reliability, drive-control, and user-instruction considerations when ultrasonic energy is applied near skin.

Product path for this search intent

Match the article topic to the right YJ Piezo product page

Use this article when the risk is supplier selection, engineering support, validation evidence, integration reliability, and whether the manufacturer can scale from sample to production. For "The Secret Behind Skincare Tech: Piezoelectric Ceramics in Ultrasonic Beauty Devices", the practical value is in turning the topic into a measurable selection or sourcing decision.


2. The Physics of Piezoelectricity: The Engine of Exfoliation

To comprehend the operation of an ultrasonic skin scrubber, one must first master the underlying physical principle: piezoelectricity. Derived from the Greek piezein, meaning to squeeze or press, this phenomenon describes the reversible relationship between mechanical stress and electrical charge in certain non-centrosymmetric crystal structures.

2.1. Historical Context and Discovery

The piezoelectric effect was discovered in 1880 by Jacques and Pierre Curie, who observed that applying mechanical pressure to crystals such as quartz, tourmaline, and Rochelle salt generated an electrical charge across their surfaces. Conversely, Gabriel Lippmann deduced, and the Curies confirmed, the existence of the inverse piezoelectric effect: the deformation of a crystal when subjected to an electric field.

It is this inverse effect that powers ultrasonic beauty devices. The "motor" inside the device is not a rotational electromagnetic engine but a solid-state ceramic block that expands and contracts in synchronization with an applied alternating voltage. While early applications were limited to phonograph pickups and rudimentary sonar (due to the limitations of natural quartz), the development of synthetic ferroelectric ceramics in the mid-20th century enabled higher-power, higher-displacement transducers used in modern beauty and dermatology-adjacent devices.

2.2. Crystallography and the Perovskite Structure

The active element in the vast majority of ultrasonic transducers is a polycrystalline ceramic with a perovskite crystal structure, most notably lead zirconate titanate, Pb(Zr,Ti)O3, or PZT.

However, as the material cools below Tc, the crystal structure distorts into a tetragonal or rhombohedral symmetry. The central titanium or zirconium ion shifts off-center relative to the oxygen cage, creating a permanent electric dipole moment within the unit cell. In a raw, sintered ceramic, these dipoles are randomly oriented across various microscopic domains, resulting in a net macroscopic polarization of zero.

2.3. The Poling Process

For ferroelectric ceramic, use a qualified poling field, temperature and time schedule to establish remanent polarization. Elevated-temperature poling can be appropriate, but just-below-Curie heating is not mandatory; room-temperature processes also exist.

When an alternating current (AC) voltage is subsequently applied to the electrodes of the poled ceramic, the material responds dynamically:

  • Positive Half-Cycle: If the applied voltage aligns with the poling direction, the dipoles stretch, causing the ceramic to expand along the poling axis (longitudinal expansion) and contract transversely through d31 under the stated free small-signal conditions; elastic Poisson coupling can also matter under load.
  • Negative Half-Cycle: If the voltage opposes the poling direction, the dipoles compress, causing the ceramic to contract longitudinally.

This rapid expansion and contraction, occurring 20,000 to 30,000 times per second (20–30 kHz), generates the ultrasonic vibration utilized in skin spatulas.

2.4. Electromechanical Coupling and Coefficients

The piezoelectric coefficient describes a mode-specific small-signal response, not finished-device power efficiency. For an unconstrained longitudinal element under the stated linear conditions, d33 relates strain to electric field as illustrated below. A bending blade or coupled stack requires its actual mode, loading, drive and loss model.

Where:

  • is the mechanical strain (dimensionless).
  • is the charge coefficient (meters/Volt).
  • is the electric field strength (Volts/meter).

In this small-signal longitudinal example at negligible applied stress, d33 relates strain to electric field. Total stroke also depends on geometry; bonded flexural blades can principally use d31. A high d33 alone does not establish blade amplitude, atomization output or efficiency. However, engineering trade-offs exist between high sensitivity (d33) and mechanical stability, which leads to the specific formulation of PZT materials used in these devices.


3. Materials Science: The Chemistry of PZT Ceramics

Not all "ultrasonic" devices are created equal. The specific composition of the piezoelectric ceramic acts as a primary differentiator between a professional device and a disposable consumer gadget. The industry relies heavily on modified PZT formulations, categorized broadly into "Hard" and "Soft" ceramics.

3.1. The PZT Phase Diagram and Doping

PZT is a solid solution of lead zirconate and lead titanate. The electromechanical properties peak near the Morphotropic Phase Boundary (MPB), where the crystal structure is on the verge of transitioning between tetragonal and rhombohedral phases. This instability allows for easier domain reorientation and thus higher piezoelectric activity.

To tailor these properties for specific applications like skin scrubbing (which requires high power and continuous vibration), the base PZT material is "doped" with trace elements.

3.1.1. "Soft" Piezoceramics (e.g., PZT-5, PZT-5H)

Soft ceramics are doped with donor ions (higher valence), such as Niobium (Nb5+) replacing Titanium (Ti4+) or Lanthanum (La3+) replacing Lead (Pb2+). These donors create lead vacancies in the lattice, which enhance domain wall mobility.

  • Characteristics: High piezoelectric constants (d33), high permittivity, and high sensitivity.
  • Drawbacks: High dielectric losses (tan δ) and low mechanical quality factors (Qm). This means that when driven at high power, they generate significant internal heat.
  • Application: While excellent for hydrophones or sensors, soft ceramics are generally poor choices for the continuous high-power drive of a skin spatula, as they are prone to overheating and depoling.

3.1.2. "Hard" Piezoceramics (e.g., PZT-4, PZT-8)

Hard ceramics are doped with acceptor ions (lower valence), such as Iron (Fe3+) replacing Titanium. These acceptors create oxygen vacancies that "pin" the domain walls, restricting their movement.

  • Characteristics: Lower sensitivity (d33) but significantly lower dielectric losses and very high mechanical quality factors (Qm).
  • Advantages for Skin Scrubbers: Hard PZT can be driven at higher power density with lower dielectric loss than many soft formulations. It maintains its properties better under mechanical stress and elevated temperatures. PZT-8 is commonly considered for high-power ultrasonic machining, cleaning, welding, and robust cosmetic-device transducer designs.

Table 1: Illustrative Material Properties of PZT Formulations — Numerical examples are not approved Yujie acceptance limits. Verify exact grade, mode, field, frequency, temperature and measurement conditions before design use.

Material Property Hard PZT (PZT-8) Soft PZT (PZT-5H) Relevance to Beauty Devices
Mechanical Q (Qm) ~1000 ~65 High Q allows sharper resonance and less energy loss.
Coupling Factor (k33) ~0.60 ~0.75 Longitudinal electromechanical coupling, not finished-device efficiency.
Dielectric Loss (tan δ) < 0.4% ~ 2.0% Low loss reduces one heat source under stated conditions; it does not prevent all overheating.
Curie Temperature (Tc) ~300°C ~190°C Tc is a material transition, not a validated device working temperature or guarantee against thermal failure.
Typical Use Ultrasonic Cleaning, Welding Sensors, Actuators Select mode-specific material and assembly characteristics from the actual acoustic duty and thermal limits.

3.2. Thermal Degradation and Depolarization

A critical failure mode in cheap ultrasonic devices is thermal depolarization. If a skin scrubber utilizes a cheaper Soft PZT element and is run continuously, the internal friction can raise the ceramic's temperature. If the temperature approaches the Curie point, the domain alignment becomes disordered.

Aging, partial depolarization and thermal response depend on grade, time after poling, field, stress and temperature history. Hard PZT is not immune to drift or fatigue, and selecting PZT-4 or PZT-8 does not establish years of constant finished-device output. Request defined endurance and output measurements.


4. Transducer Engineering: From Ceramic Disc to Resonant Horn

The piezoelectric ceramic is merely the engine; the transmission system is the transducer assembly and the metal spatula blade. The engineering goal is to amplify the nanometer-scale vibrations of the ceramic into micrometer-scale excursions at the blade tip.

4.1. Transducer Architectures: Langevin vs. Unimorph

There is a fundamental schism in device construction that correlates directly with price and efficacy.

4.1.1. The Langevin (Bolt-Clamped) Transducer

Standard in many professional skin scrubbers, this design (invented by Paul Langevin for WWI sonar) consists of piezoelectric rings sandwiched between a metal back mass (usually steel) and a front mass (aluminum or titanium). A high-tensile bolt runs through the center, applying compressive pre-stress to the ceramics.

  • Why Pre-stress? Ceramics are strong in compression but weak in tension. High-amplitude vibration creates cycles of tension that can crack the ceramic. The bolt ensures the ceramic remains in compression even during the expansion cycle, allowing the device to be driven at much higher power levels.
  • Heat Dissipation: The metal masses act as heat sinks, stabilizing the temperature of the PZT elements.

4.1.2. The Unimorph/Bimorph Disc

Found in entry-level "at-home" scrubbers, this design bonds a simple thin PZT disc directly to the metal blade or a small carrier plate using epoxy.

  • Limitations: Lacking pre-stress, these cannot be driven hard without cracking. They rely on the "bending mode" (flexure) rather than the robust "piston mode" (longitudinal) of the Langevin stack. Consequently, their power output is significantly lower, and they often struggle to maintain atomization when pressed firmly against the skin.

4.2. Acoustic Horn Design: The Spatula

The metal blade, often called the spatula, is technically an acoustic horn or waveguide. Its shape is not purely aesthetic; it is calculated to magnify the vibration amplitude.

  • Stepped Horn Profile: Gain depends on mode shape, impedance, length, boundaries and load, with stress-concentration tradeoffs. Area reduction alone is not an unconditional amplitude rule, and a flexural spatula is not automatically a 1D longitudinal horn. Validate loaded displacement gain and stress rather than ranking every stepped horn highest.
  • Nodal Mounting: The device must be held by a therapist or user. To prevent the vibration from being dampened by the hand, the housing attaches to the metal horn at a "nodal point"—a specific location where the standing wave creates zero longitudinal displacement. Conversely, the tip of the blade is an "anti-node," the point of maximum displacement. Incorrect identification of these nodes during design results in a device that vibrates the user's hand more than the client's face.

4.3. Material Selection: Titanium vs. Stainless Steel

The horn material must possess high acoustic transmission efficiency and fatigue strength.

  • Titanium (Ti-6Al-4V): The preferred material for high-end devices due to its high strength-to-weight ratio and low acoustic loss. Fatigue performance depends on geometry, stress, surface condition, mounting and environment; establish endurance for the actual horn.
  • Stainless Steel (304/316): Common in mid-range devices. Heavier and with higher internal damping than titanium, leading to more heat generation at the tip.
  • Aluminum: Used in the rear sections of Langevin transducers but rarely for the blade itself due to poor corrosion resistance and lower surface hardness.

5. Electronic Drive Systems and Frequency Control

The piezoelectric engine requires a precisely tuned electrical driver. The sophistication of this circuit determines whether the device maintains performance under load or "stalls" upon contact with the skin.

5.1. Impedance Matching and Resonance

A piezoelectric transducer is a capacitive load. To drive it efficiently, the driver must meet the loaded impedance, voltage, current and waveform requirements; battery-to-transducer impedance matching is not a universal direct interface rule. At its mechanical resonance frequency (fr, typically 25–28 kHz), the transducer's electrical impedance drops to a minimum (series resonance), allowing maximum current flow.

A matching network can compensate capacitive reactance at a specified operating point. Evaluate the complete loaded impedance, real power, current and voltage limits over the operating range; compensation does not guarantee a purely resistive load under every skin/contact condition or turn all electrical input into useful mechanical output.

5.2. Frequency Tracking: The PLL Advantage

A critical challenge in ultrasonic engineering is that the resonant frequency of a transducer is not fixed. It shifts due to:

  1. Thermal Drift: As the PZT heats up, its stiffness and dimensions change, shifting fr.
  2. Load Variation: Pressing the blade against the skin adds mass and damping, shifting fr.
  • Fixed Frequency Drivers: Cheap devices often use a simple timer IC (like a 555 timer) set to a static frequency (e.g., 28 kHz). If the transducer's resonance shifts to 28.5 kHz due to heat, the fixed driver is no longer synchronized. Power transfer efficiency collapses, misting stops, and the device creates heat instead of vibration.
  • Auto-Tuning (PLL): A qualified phase or resonance-tracking controller can adjust frequency within its operating range. Tracking alone does not guarantee constant acoustic output under arbitrary pressure, temperature or runtime. Verify drive limits, loading, protection and delivered output for the finished device.

5.3. Waveform Modulation

While continuous wave (CW) ultrasound is used for cleaning, many devices offer "pulsed" modes for sonophoresis or "lifting."

  • Pulse Width Modulation (PWM): By gating the ultrasonic signal (e.g., turning it on and off at 10 Hz), the device reduces the total thermal load on the skin while maintaining high peak power for mechanical effects. This is important during "infusion" modes where the blade is held flat against the skin.

6. Fluid Dynamics: The Mechanism of Action

The "ultrasonic" effect in skincare is mediated almost entirely through fluid. A dry ultrasonic spatula is ineffective and potentially damaging. The interaction between the vibrating blade and the liquid coupling medium generates three primary physical phenomena: Atomization, Cavitation, and Acoustic Streaming.

6.1. Atomization (Micronization)

The most visible effect of a skin scrubber is the fine mist it generates. This is not evaporation (boiling) but mechanical atomization. When the blade vibrates at ~28,000 Hz, it creates capillary waves on the surface of the liquid film. As the amplitude of vibration increases, capillary-wave instabilities can develop. When the acceleration at the wave crest exceeds the surface tension holding the liquid together, droplets are ejected into the air.

  • Engineering Utility: This "micronization" confirms that the acoustic system is active. Furthermore, the ejection of fluid from the leading edge of the spatula helps to mechanically move liquid and debris near follicular openings.

6.2. Acoustic Cavitation: The Cleaning Power

Cavitation is the formation, growth, and collapse of vapor bubbles in a liquid due to rapid pressure fluctuations.

  • Inertial (Transient) Cavitation: At low ultrasonic frequencies (20–30 kHz), the negative pressure phase of the sound wave can expand a gas nucleus in the water to a critical size. During the subsequent compression phase, the bubble collapses violently.
  • The Micro-Jet: When this collapse occurs near a solid boundary (the skin surface), the bubble cannot collapse symmetrically. Instead, it forms a high-velocity liquid jet (micro-jet) directed toward the surface. Jet velocities and transient pressures depend on the bubble, field, boundary and liquid. No measured values are established here for a skin-scrubber device.
  • Debridement: These shock waves and micro-jets act as microscopic jackhammers, blasting dead skin cells (corneocytes), sebum, and comedones off the surface of the skin. This is the primary mechanism of "ultrasonic peeling".

Table 2: Frequency vs. Cavitation Dynamics

Frequency Bubble Size Implosion Energy Application
25 - 28 kHz Bubble distribution requires the actual pressure field, nuclei and liquid conditions High (Violent) Heavy cleaning, Debridement (Scrubbers)
40 kHz Medium Moderate General Ultrasonic Cleaning (Jewelry)
1 - 3 MHz Small Field/duty-dependent; frequency alone does not establish gentle exposure Sonophoresis, thermal massage devices

The frequency table is an architecture overview, not a validated bubble-size, implosion-energy or skin-efficacy specification. Determine pressure, coupling, liquid film, duty and measured device outcomes before assigning cleaning or tissue effects.

6.3. Acoustic Streaming

Beyond bubble collapse, the sound waves create a steady, time-averaged flow of fluid known as acoustic streaming.

  • Role in Sonophoresis: This unidirectional flow generates shear forces that can effectively "push" fluid and dissolved active ingredients into the skin's pores and hair follicles. It also thins the diffusion boundary layer on the skin surface, enhancing the passive diffusion of topicals.

7. Biophysical Interactions with Human Skin

The interaction of the ultrasonic blade with the skin is a balance between mechanical cleaning action, user comfort, and barrier preservation. The skin is a viscoelastic material, and its response to high-frequency stress is complex.

7.1. Desquamation and the Stratum Corneum

The stratum corneum (SC) is the outermost layer of the epidermis, consisting of dead, keratinized cells (corneocytes) embedded in a lipid matrix (the "brick and mortar" model).

  • Mechanism assessment: Blade contact, liquid motion and acoustic exposure can contribute to surface effects. Identify an actual study and its device, pressure, duty and skin preparation before assigning SEM observations or a specific corneocyte-removal mechanism to a commercial scrubber.
  • Efficacy: Surface-cleaning or appearance claims require measurements with the finished device and defined use. A plausible acoustic mechanism does not establish clinical or cosmetic superiority.

7.2. Low-Frequency Sonophoresis (LFS)

While high-frequency ultrasound (1-3 MHz) has long been used for phonophoresis research, low-frequency ultrasound (20-100 kHz)—the range used by many skin scrubbers—can affect surface cleaning and permeability differently. Finished beauty or medical-cosmetic devices still need their own validation for performance and user claims.

  • Lipid Disruption: The primary barrier to drug delivery is the lipid bilayers of the SC. Inertial cavitation bubbles oscillating in the coupling gel create shock waves that transiently disorder these lipid layers, creating "aqueous channels" or lacunar regions through which hydrophilic molecules (like Vitamin C or hyaluronic acid) can pass.
  • Permeability research: Original sonophoresis experiments establish effects under their particular exposure, formulation and tissue conditions. They do not establish a 1000-fold benefit for every commercial blade or skincare product; identify the experiment and validated intended use.

7.3. Thermal Effects and Device Controls

The conversion of mechanical energy to heat in tissue is unavoidable.

  • Frictional Heating: Blade/contact friction may contribute to heat, along with acoustic absorption and device losses. Identify the measured dominant contribution for the actual configuration. If the blade is held stationary, local temperatures can rise rapidly, leading to burns.
  • Absorption Heating: Tissue absorbs acoustic energy. The absorption coefficient increases with frequency. Frequency alone does not establish penetration depth for a skin spatula; coupling, geometry, attenuation/scattering and measured field matter.
  • Device Controls: Acoustic intensity, duty cycle, coupling liquid, user instructions, and drive limits should be validated by the finished-device manufacturer. Keeping the blade moving and the skin wet is commonly used to reduce localized heating during cosmetic use.

8. Device Performance and Comparative Analysis

How does the ultrasonic spatula compare to established modalities like microdermabrasion or chemical peels?

8.1. Ultrasonic Scrubber vs. Microdermabrasion

  • Mechanism: Microdermabrasion uses aluminum oxide crystals or a diamond tip with vacuum suction to abrade the skin.
  • Pros/Cons: Scar outcomes and adverse effects depend on the actual procedure, condition and clinical evidence. Use procedure-specific indications and contraindications rather than a universal effectiveness or harm ranking.
  • Comparison: Ultrasonic scrubbing is often described as "cavitation peeling." It is non-abrasive and lacks suction, which can make it a gentler exfoliation approach when the finished device is used according to its instructions.

8.2. Published Device-Study Insights

  • Cleansing Efficiency: Studies utilizing fluorescence photography and sebummetry have demonstrated that sonic/ultrasonic cleansing devices remove significantly more particulate pollution and makeup residue than manual cleansing.
  • Topical Delivery: Low-frequency sonophoresis studies suggest that acoustic streaming and cavitation can influence skin permeability under controlled conditions.
  • Limitations: Ultrasonic scrubbers are generally designed for superficial exfoliation and topical-use support rather than deep tissue remodeling.

9. Engineering Challenges, Reliability, and Failure Modes

The reliability of an ultrasonic device is dictated by its ability to handle the intense mechanical stresses of resonance.

9.1. Architecture and Reliability Evidence

Price does not establish a device’s ceramic grade, unimorph/Langevin construction, tracking circuit or reliability. Identify the actual architecture, drive waveform, loaded output, bond integrity, ingress design and endurance evidence. A low-frequency ERM mechanism does not generate ultrasound, but no particular marketplace device is established here as containing one.

9.2. Moisture Ingress and Corrosion

Ultrasonic devices operate in a wet environment. Document the actual coating/potting, seals and approved moisture conditions. Price or a professional label does not establish the electronics’ ingress design. Moisture ingress can cause arcing across the high-voltage transformer traces, leading to immediate device death.


10. Use-Condition Assessments and Contraindications

Despite being "non-invasive," the physics of ultrasound requires clear output limits, instructions, and contraindications in the finished device.

10.1. Bio-Impedance and Bone Heating

Ultrasound waves reflect strongly at interfaces where acoustic impedance changes, such as soft tissue to bone. When used over thin skin areas, device energy can be perceived as discomfort if coupling, motion, intensity, or duty cycle are poorly controlled. Finished-device instructions and output limits should address these use conditions.

10.2. Contraindications

  • Implanted devices: Use the finished device’s labeled restrictions and relevant clinical advice. Ultrasound actuation, galvanic/current modes, drive electronics and implanted equipment require their own compatibility assessment; do not invent a universal contraindication from the ceramic alone.
  • Pregnancy: Follow the finished device’s intended-use labeling and clinical advice; this component overview does not establish a pregnancy standard of care.
  • Skin conditions and infection control: Use the device’s clinical/use restrictions and validated cleaning process. An atomization mechanism alone does not establish the specific viral/bacterial spread claimed here.

11. Future Outlook and Technological Convergence

The future of ultrasonic skincare lies in "smart" transducers. Emerging technologies are integrating impedance feedback sensors directly into the blade. These sensors detect the hydration level of the skin in real time and adjust the ultrasonic amplitude to reduce dry-contact heating or optimize cavitation when coupling is adequate. Besides, the shift toward lead-free piezoelectric ceramics (like KNN) may eventually reach this market, driven by environmental regulations and supply-chain goals, forcing a re-engineering of the drive circuits to accommodate the different coupling coefficients of these greener materials.

In conclusion, the ultrasonic skin spatula is a triumph of applied physics. It repurposes the violent forces of cavitation—forces capable of destroying ship propellers—and tames them through precise frequency tuning and material engineering to perform the delicate task of facial exfoliation. It stands as a testament to the utility of piezoelectric ceramics, bridging the gap between heavy industrial cleaning and delicate human aesthetics.


Report Data Summary: Technical Comparison

Feature Scam/Fake Device Illustrative bonded-bender architecture Illustrative bolt-clamped architecture
Vibration Source Eccentric Motor (Phone motor) Piezo Disc (Unimorph) Langevin Stack (Bolt-clamped)
Frequency ~200 Hz ~24-28 kHz (Fixed) ~28 kHz (Auto-Tracking PLL)
Material Steel/Plastic Soft PZT-5 + Steel Hard PZT-8 + Titanium
Cavitation None Low/Inconsistent High/Stable
Thermal Stability N/A Poor (Drifts/Overheats) Excellent (Active heat sinking)
Mechanism Vibration only Weak Atomization Atomization + Cavitation + Streaming
Typical Cost Entry-level Mid-range Professional
