What information is needed for a custom piezoelectric component quote?

Send a drawing or dimensional targets, the application, preferred material if known, electrical or acoustic targets, electrode and poling requirements, operating conditions, expected quantities, and required inspection or documentation. If some values are still open, identify them as targets so engineering can review the trade-offs.

Can Yujie review non-standard PZT shapes?

Yes. Yujie can review discs, rings, plates, tubes, blocks, curved parts, and application-specific ceramic geometries. Feasibility depends on the dimensions, material, electrode layout, poling direction, machining needs, and how the part will be mounted or bonded.

How is the PZT material grade selected for a custom component?

Selection starts from the required sensitivity, power level, mechanical quality factor, temperature window, dielectric behavior, frequency, and operating medium. Yujie's published P-33, P-43, P-44, P-51, P-52, and P-81 data provide a comparison point; the final direction is reviewed against the finished-device conditions.

Can a project start with samples before production?

A sample or pilot stage can be reviewed before production. The appropriate quantity, tooling path, inspection scope, cost, and schedule are confirmed after the drawing and performance targets are reviewed, because a catalog-like geometry and a special process do not follow the same plan.

What inspection records can be agreed for custom PZT parts?

The quality plan can include dimensional inspection and agreed electrical or acoustic checks such as capacitance, resonance, impedance, or other order-specific criteria. The applicable records and acceptance limits should be confirmed with the quotation rather than assumed from a generic document list.

Custom PZT & Piezoelectric Components for OEM Applications

YUJIE TECHNOLOGY reviews custom piezoelectric ceramic components from the device requirements backward. Send a drawing—or dimensional targets if the design is still open—together with the application, material preference, electrical or acoustic targets, electrode and poling details, operating conditions, quantities, and required records. Engineering then reviews the material, geometry, interfaces, sample path, and inspection scope as one connected system. Discs, rings, plates, tubes, blocks, curved parts, and special PZT geometries can be considered, but feasibility, sample quantity, production plan, and schedule are confirmed only after the actual requirements are reviewed.

Features & Applications

Drawing-led OEM development

Engineering handoff

Four decisions that must stay connected

Material

Sensitivity · power · loss · temperature

Geometry

Mode · frequency · mounting · space

Interfaces

Electrodes · poling · leads · bonding

Evidence

Dimensions · electrical checks · records

A strong RFQ does not need every answer. It should clearly separate fixed requirements from open engineering targets.

Custom component scope

Design decisions reviewed as one manufacturing problem

Piezoelectric performance is not determined by material alone. Geometry, poling, electrode layout, mounting, bonding, driver conditions, and the final assembly can change the result. The review keeps these dependencies visible before a sample plan is confirmed.

Geometry built around the device

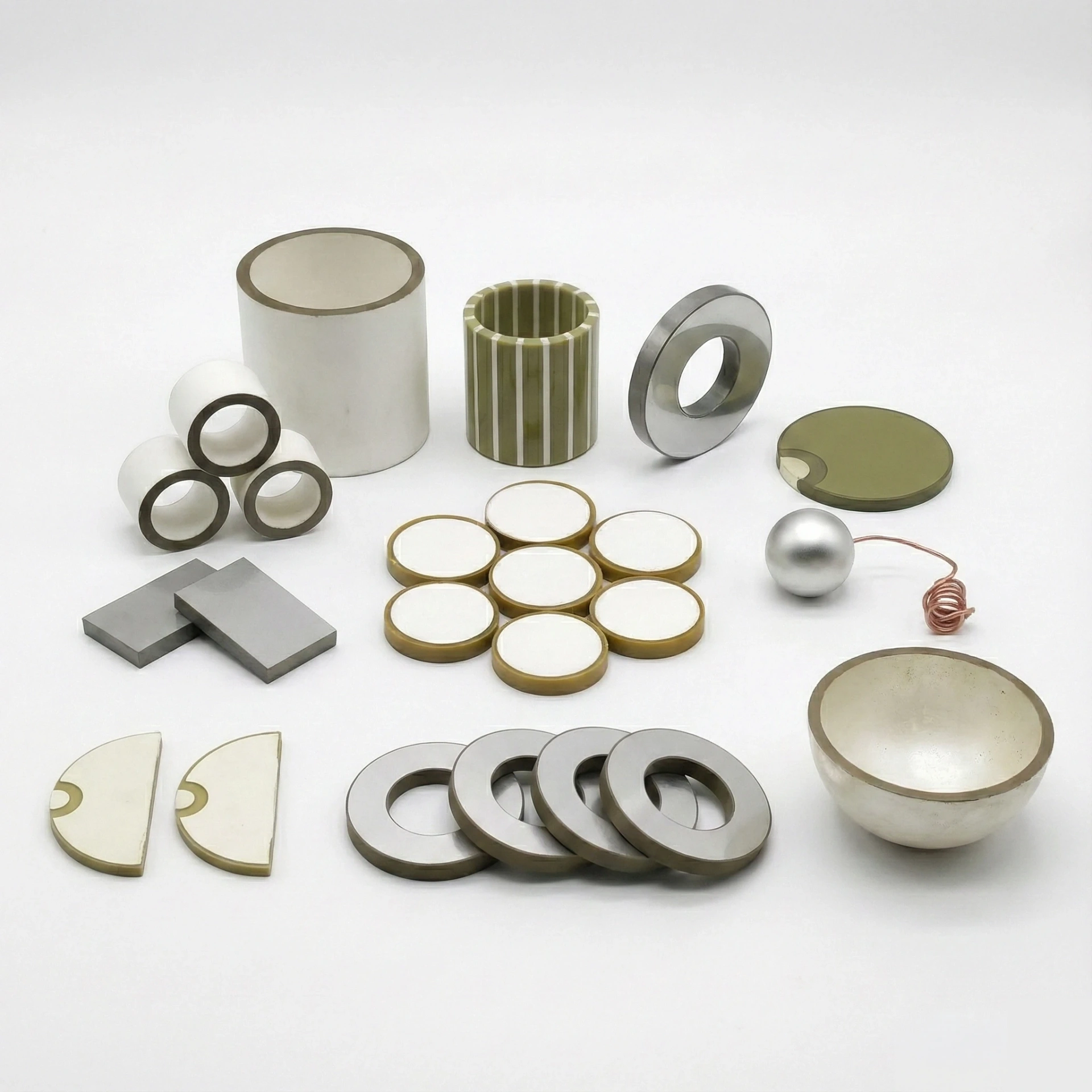

Discs, rings, plates, tubes, blocks, curved parts, and special profiles are reviewed against the mounting, acoustic path, motion, and available installation space.

Material and poling direction

Published P-33, P-43, P-44, P-51, P-52, and P-81 grades provide the starting comparison. The application determines whether sensitivity, power handling, loss, temperature, or mechanical stability takes priority.

Electrodes and interfaces

Electrode coverage, segmentation, wrap-around features, metallization, lead connection, bonding surfaces, and assembly interfaces are reviewed as part of the component—not as afterthoughts.

Acceptance evidence

Dimensions and agreed electrical or acoustic checks can be built into the inspection plan. The applicable measurements, limits, sampling, and records are confirmed for the order.

Start with the closest geometry

The base shape narrows the dimensions, operating modes, tooling questions, and useful RFQ inputs.

Development path

From open targets to a controlled drawing

The process is designed to expose assumptions early. A component that looks acceptable by dimension can still fail when the housing, adhesive, preload, driver, or operating medium changes.

01Define the operating problemShare what the component must transmit, receive, move, detect, or withstand. Include the operating medium, temperature, drive or signal conditions, duty cycle, mounting, and integration boundary.
02Review material and geometryEngineering checks whether a published grade and a familiar shape can meet the target. Open values are treated as design targets, while confirmed requirements are kept separate.
03Agree the sample planThe drawing revision, electrode and poling details, sample quantity, tooling path, measurements, and acceptance criteria are aligned before the sample build is confirmed.
04Validate in the real assemblyThe customer evaluates the element in its housing, bonding system, driver, load, and operating medium. Results are used to refine the part or freeze the design.
05Freeze production controlsThe approved drawing, material direction, inspection plan, packaging, documentation, quantity, and schedule become the basis for production review and repeat-order control.

Define the operating problem

Share what the component must transmit, receive, move, detect, or withstand. Include the operating medium, temperature, drive or signal conditions, duty cycle, mounting, and integration boundary.

Review material and geometry

Engineering checks whether a published grade and a familiar shape can meet the target. Open values are treated as design targets, while confirmed requirements are kept separate.

Agree the sample plan

The drawing revision, electrode and poling details, sample quantity, tooling path, measurements, and acceptance criteria are aligned before the sample build is confirmed.

Validate in the real assembly

The customer evaluates the element in its housing, bonding system, driver, load, and operating medium. Results are used to refine the part or freeze the design.

Freeze production controls

The approved drawing, material direction, inspection plan, packaging, documentation, quantity, and schedule become the basis for production review and repeat-order control.

RFQ checklist for a useful first review

Send what is known and label what is not yet fixed. A sketch and a clear operating problem are more useful than a complete-looking specification built on hidden assumptions.

Drawing, sketch, or dimensional targets with units and revision
Application and whether the element transmits, receives, senses, or actuates
Preferred PZT grade, or the performance priority if the grade is open
Frequency, capacitance, impedance, displacement, force, or acoustic targets that matter
Electrode pattern, poling direction, lead, bonding, and mounting requirements
Drive or signal conditions, duty cycle, temperature, pressure, liquid, or other environment
Sample intent, expected production quantity, destination, and timing target
Inspection records, certificates, traceability, packaging, and acceptance requirements

Inspection follows the engineering risk

Dimensional inspection is often paired with agreed electrical or acoustic checks such as capacitance, resonance, or impedance. The right set depends on the component, the customer's validation method, and what the finished assembly must prove. Requested limits, sampling, traceability, certificates, and report format should be identified before quotation so the order does not inherit an assumed document package.

Component supply has a defined boundary

Yujie's standard scope is the piezoelectric ceramic part or an assembly-ready element. If the request includes a finished actuator, sensor, transducer, housing, cable, driver, or bonded assembly, define the interfaces and responsibilities first. That keeps component performance, system integration, and end-device validation from being mixed into one untestable promise.

Does Yujie supply finished piezo actuator systems?

Ready for engineering review

Send the drawing, targets, and open questions

We will review the information needed to define material, geometry, interfaces, sample planning, and acceptance evidence for the actual project.

Frequently Asked Questions

What information is needed for a custom piezoelectric component quote?: Send a drawing or dimensional targets, the application, preferred material if known, electrical or acoustic targets, electrode and poling requirements, operating conditions, expected quantities, and required inspection or documentation. If some values are still open, identify them as targets so engineering can review the trade-offs.
Can Yujie review non-standard PZT shapes?: Yes. Yujie can review discs, rings, plates, tubes, blocks, curved parts, and application-specific ceramic geometries. Feasibility depends on the dimensions, material, electrode layout, poling direction, machining needs, and how the part will be mounted or bonded.
How is the PZT material grade selected for a custom component?: Selection starts from the required sensitivity, power level, mechanical quality factor, temperature window, dielectric behavior, frequency, and operating medium. Yujie's published P-33, P-43, P-44, P-51, P-52, and P-81 data provide a comparison point; the final direction is reviewed against the finished-device conditions.
Can a project start with samples before production?: A sample or pilot stage can be reviewed before production. The appropriate quantity, tooling path, inspection scope, cost, and schedule are confirmed after the drawing and performance targets are reviewed, because a catalog-like geometry and a special process do not follow the same plan.
What inspection records can be agreed for custom PZT parts?: The quality plan can include dimensional inspection and agreed electrical or acoustic checks such as capacitance, resonance, impedance, or other order-specific criteria. The applicable records and acceptance limits should be confirmed with the quotation rather than assumed from a generic document list.
Does Yujie supply finished piezo actuator systems?: Yujie's standard scope is the piezoelectric ceramic component or assembly-ready element. A finished actuator, stage, or integrated assembly is only reviewed after the displacement, load, drive, mechanical interface, environment, and responsibility boundary are defined.
