Driving Piezo Actuators: Guide to Drivers and Electronics for Piezo Ceramics

Published Updated By YJ Piezo Engineering TeamTechnical review by YJ Piezo Engineering Team772 words4 min read

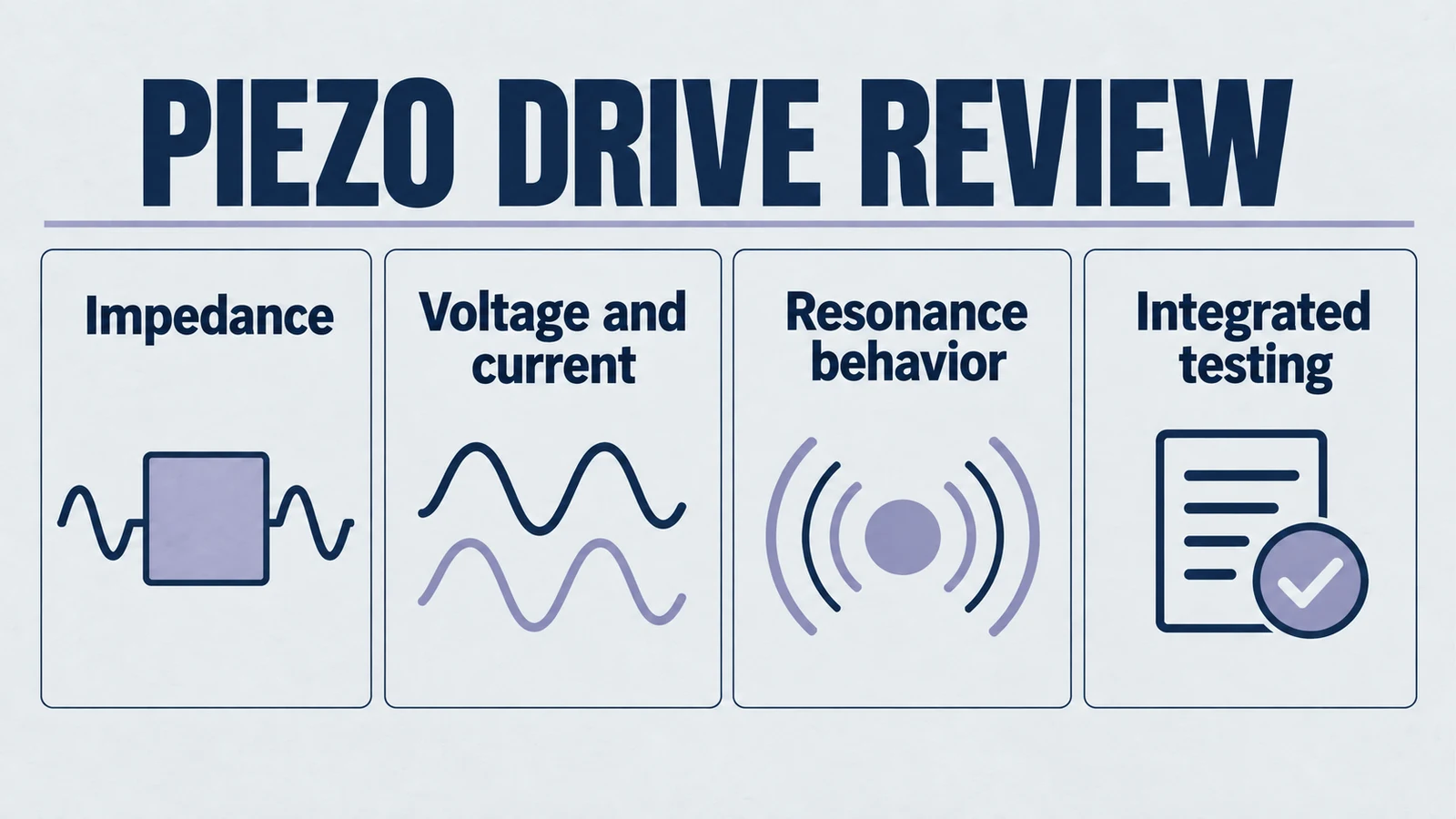

piezo drive review: Impedance, Voltage and current, Resonance behavior, Integrated testing.
Impedance · Voltage and current · Resonance behavior · Integrated testing

Driving Piezo Actuators: Guide to Drivers and Electronics for Piezo Ceramics

Piezoelectric actuators are widely used in precision positioning, microscopy, semiconductor manufacturing, and vibration control due to their nanometer-level resolution and rapid response. However, driving piezo actuators effectively requires a solid understanding of piezo actuator drivers, suitable piezo driver circuits, and the appropriate high-voltage amplifier for piezo ceramics to ensure stability, precision, and efficiency in your applications.

Understanding Piezo Actuator Driving Requirements

Piezo actuators operate based on the inverse piezoelectric effect, requiring high-voltage, low-current signals to induce mechanical displacement. Driving these actuators effectively requires:

Product path for this search intent

Match the article topic to the right YJ Piezo product page

Use this article when the choice is not just a shape, but a material tradeoff between sensitivity, loss, coupling, stability, and operating field. For "Driving Piezo Actuators: Guide to Drivers and Electronics for Piezo Ceramics", the practical value is in turning the topic into a measurable selection or sourcing decision.

  • High voltage: Often in the range of 50V to 1000V depending on travel range.
  • Current requirement: Static leakage can be small, but dynamic source/sink current follows capacitance and voltage slew: I=C dV/dt in the capacitive approximation. For a sinusoid, peak current is πfCVpp. Select peak and continuous driver limits using the waveform and large-signal capacitance; resonance requires the complete loaded impedance.
  • Precision control: To achieve high-resolution positioning.
  • Fast response capability: For dynamic applications.
  • Charge management: Preventing drift and hysteresis for consistent repeatability.

What is a Piezo Actuator Driver?

A piezo actuator driver is an electronic device that converts low-voltage control signals into the high-voltage signals required by piezo actuators while maintaining signal fidelity. It typically consists of:

  • A high-voltage amplifier stage.
  • Signal conditioning and filtering.
  • Protection circuitry to avoid over-voltage or over-current conditions.
  • Interfaces for analog or digital control signals.

Types of Piezo Driver Circuits

1. High-Voltage Amplifiers for Piezo

These amplifiers boost low control voltages (±10V, for example) to the high voltages needed for piezo ceramics while preserving linearity and low noise. Key considerations:

  • Voltage range: Matching actuator voltage requirements.
  • Bandwidth: Supporting the required operating frequency.
  • Current capability: Sufficient for the actuator's capacitive load.
  • Noise performance: Low ripple to avoid inducing unwanted vibrations.

2. Charge Amplifiers

Instead of voltage, charge amplifiers control the charge delivered to the piezo, which helps reduce hysteresis and nonlinearity, improving positioning accuracy.

3. Digital Piezo Drivers

These drivers incorporate digital control (USB, Ethernet, SPI) with integrated DAC and feedback systems for closed-loop operation, enabling precise and programmable actuator control.

Key Factors in Selecting a Piezo Driver

When choosing a piezo actuator driver for your application, consider:

  • Actuator specifications: Maximum voltage, capacitance, travel range.
  • Required resolution and accuracy: Determines the need for high precision and low noise.
  • Frequency response needs: Higher frequencies require drivers with higher bandwidth.
  • Feedback requirements: For closed-loop control, consider drivers with integrated feedback systems.
  • Form factor and cooling: Some high-power drivers require active cooling.

Practical Tips for Implementing Piezo Driver Circuits

  • Cable selection: Use low-capacitance cables to reduce power loss and preserve bandwidth.
  • Grounding and shielding: Prevent noise coupling, which can degrade positioning accuracy.
  • Soft start mechanisms: To prevent sudden voltage spikes damaging the actuator.
  • Monitoring: Use current and voltage monitors for diagnostics.

Example Application: High-Precision Microscopy

In high-resolution microscopy, piezo actuators driven by high-voltage amplifiers enable nanometer-scale z-axis focusing. By pairing your actuator with a low-noise, high-bandwidth piezo driver, you can achieve rapid and precise focus adjustments with minimal drift, which is critical in live-cell imaging or semiconductor inspection.

The Role of Piezoelectric Materials

The performance of your piezo actuator driver system depends heavily on the quality of the underlying piezoelectric materials. High-quality PZT ceramics offer superior linearity, lower hysteresis, and better thermal stability, which translates to more consistent driver performance and longer system life.

Common Challenges and Solutions

When implementing piezo driver circuits, engineers often encounter:

  • Hysteresis and drift: Use charge control or closed-loop feedback systems.
  • Thermal effects: Implement temperature compensation in the control algorithm.
  • EMI/EMC compliance: Proper shielding and filtering of high-voltage switching circuits.
  • Power efficiency: Modern switching amplifiers offer better efficiency than linear designs.

Future Trends in Piezo Driver Technology

The field of piezo actuator drivers continues to evolve with advances in:

  • Digital control systems: Enhanced precision through software-based control algorithms.
  • Multi-channel drivers: Enabling complex multi-axis positioning systems.
  • Integrated feedback: Built-in position sensing for improved accuracy.
  • Miniaturization: Compact drivers for portable and embedded applications.

Conclusion

Effectively driving piezo actuators requires selecting and integrating the right piezo actuator driver and piezo driver circuit matched to your application's voltage, frequency, and precision needs. Whether using high-voltage amplifiers for piezo positioning or advanced digital drivers for programmable control, understanding these driver technologies ensures you can fully utilize the advantages of piezo actuators in your precision engineering projects.

The choice of driver electronics significantly impacts system performance, from positioning accuracy to long-term stability. By considering the factors outlined in this guide and working with experienced suppliers of piezoelectric components, you can build robust and reliable piezo-driven systems.


If you are looking for customized piezo actuator drivers, high-voltage amplifiers for piezo ceramics, or engineering support for your application, contact us to discuss your project needs with our technical team. At Yujie, we provide comprehensive solutions for precision piezo applications.

Engineering decision notes

PZT material and ceramic selection

Use this article when the choice is not just a shape, but a material tradeoff between sensitivity, loss, coupling, stability, and operating field. For "Driving Piezo Actuators: Guide to Drivers and Electronics for Piezo Ceramics", the practical value is in turning the topic into a measurable selection or sourcing decision.

YJ Piezo coordinates PZT ceramic projects with manufacturing support, so material formulation, sintering, polarization, electrode process, and outgoing inspection can be reviewed against the final application.

Selection checks

  • Separate sensing needs from high-power actuation needs before comparing d33 or coupling values.
  • Check dielectric loss, Qm, Curie temperature, aging behavior, and operating field against the real duty cycle.
  • Confirm whether the application needs standard PZT grades or a custom formulation and geometry.

Failure risks

  • Choosing only the highest d33 can create heat, drift, or depolarization risk in power ultrasonics.
  • A ceramic that performs well in free measurement can fail once bonded, clamped, or loaded.
  • Material substitutions without batch testing can change capacitance, resonance, and system tuning.

RFQ details

  • Is the part used for sensing, actuation, atomization, cleaning, welding, or measurement?
  • What field strength, temperature, duty cycle, and mechanical load will the ceramic see?
  • Which values must be controlled: d33, capacitance, resonance, impedance, Qm, or dimensional tolerance?
