High-Power Ultrasonic Cleaning Transducer 25 kHz 110W | HJ-5025

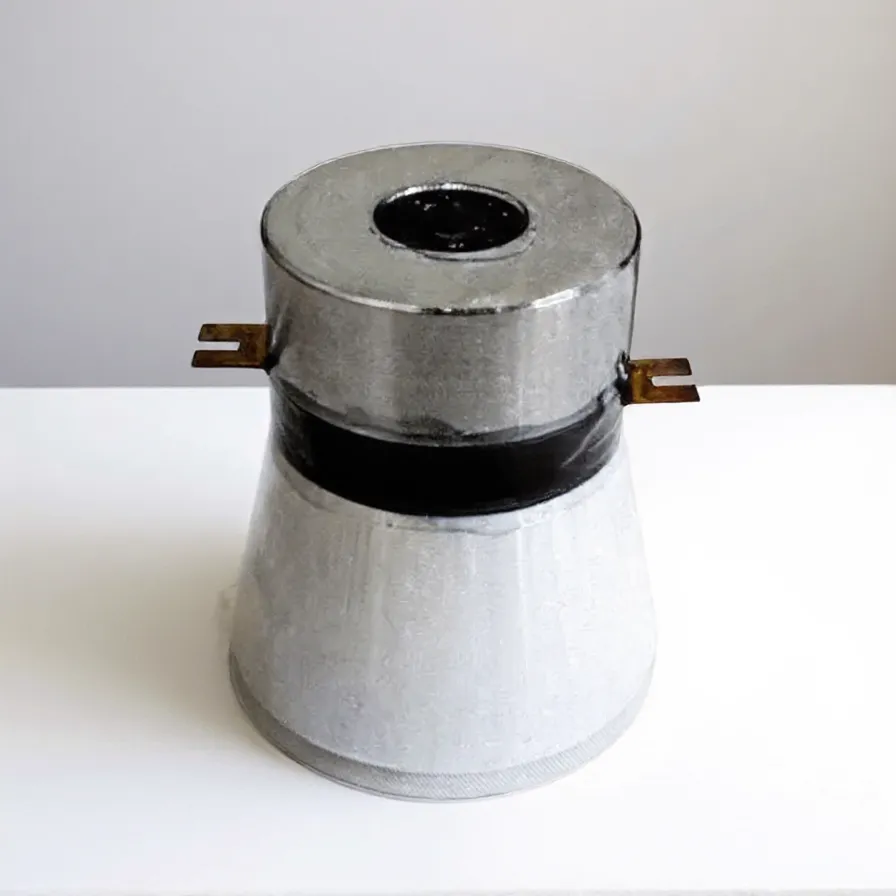

The Yujie HJ-5025 is our highest-power standard cleaning transducer at 110W and 25 kHz. With the largest Ø50mm wafer and 6430 pF capacitance, it delivers maximum cleaning capability for heavy-duty industrial applications and large-scale cleaning systems.
Features & Applications
Specification status: Preliminary catalog specifications. Confirm all design-critical values with engineering before design freeze.
Technical Specifications
Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.
Application Fit
- •Heavy-Duty Industrial: Large machine parts, industrial equipment
- •Large-Scale Systems: Multi-tank cleaning lines
- •Manufacturing: High-volume parts cleaning
- •Metal Fabrication: Welded assemblies, fabricated parts
- •Aerospace MRO: Aircraft component cleaning
- •Rail Industry: Locomotive parts, brake systems
Features
- ✔High Power (110W) – Maximum cleaning power in standard size
- ✔Large Wafer (Ø50mm) – Largest in the series for best efficiency
- ✔High Capacitance (6430 pF) – Stable power under heavy loads
- ✔25 kHz Frequency – Strong cavitation for tough cleaning
- ✔Industrial Construction – Built for 24/7 operation
- ✔Optimized Height (74mm) – Balanced amplitude and compactness
Applications
- •Heavy-Duty Industrial: Large machine parts, industrial equipment
- •Large-Scale Systems: Multi-tank cleaning lines
- •Manufacturing: High-volume parts cleaning
- •Metal Fabrication: Welded assemblies, fabricated parts
- •Aerospace MRO: Aircraft component cleaning
- •Rail Industry: Locomotive parts, brake systems
Need Engineering Support for HJ-5025?
Send tank size, target frequency, bonded or bolt-on mounting, duty cycle, and quantity to receive a matched quotation.
Engineering Tools and Supplier Resources
Estimate common PZT design parameters before sending an RFQ.
See material control, customization scope, and engineering support.
Review material grades and selection criteria.
Request Specifications & Pricing for HJ-5025
Get detailed datasheets, OEM pricing, and lead time for the HJ-5025. MOQ is project-specific and confirmed after the frequency, mounting, and validation scope are reviewed. We can usually provide outgoing resonance / impedance data, batch inspection records, and basic consistency reports for cleaning projects.
The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.
Key Specifications
Performance
| Model | HJ-5025 |
|---|---|
| Resonance Frequency | 25.0 ± 0.3 kHz |
| Bandwidth | 1.10 kHz |
| Static Capacitance | 6430 pF |
| Impedance | ≤ 30 Ω |
| Insulated Impedance | ≥ 100 MΩ |
Mechanical
| Wafer Size | Ø50 × Ø15 × 5 mm |
|---|---|
| Overall Dimensions | Ø67 × 74 mm |
| Bolt Hole Dimension | M10 × 1.0 |
Integration
| Power Output | 110 W |
|---|
Procurement
| MOQ / Sample Policy | MOQ is project-specific and confirmed after the frequency, mounting, and validation scope are reviewed.PROJECT-SPECIFIC |
|---|---|
| Sample Lead Time | Sample availability and lead time are confirmed after frequency, mounting, and tank parameters are reviewed.PROJECT-SPECIFIC |
| Production Lead Time | Production lead time is quoted after quantity, stud requirements, and bonding configuration are confirmed.PROJECT-SPECIFIC |
| Customization Scope | Common OEM options include frequency matching, bolt thread, ceramic stack adjustment, cable length, and mounting envelope.PROJECT-SPECIFIC |
| Available Documents & Reports | We can usually provide outgoing resonance / impedance data, batch inspection records, and basic consistency reports for cleaning projects.PROJECT-SPECIFIC |
