Ultrasonic atomizing discs

Three 1.7 MHz PZT disc configurations for ultrasonic humidification and mist-generation equipment. Select by contact method, mounting envelope and driver requirements.

Features & Applications

YJ Piezo · OEM components

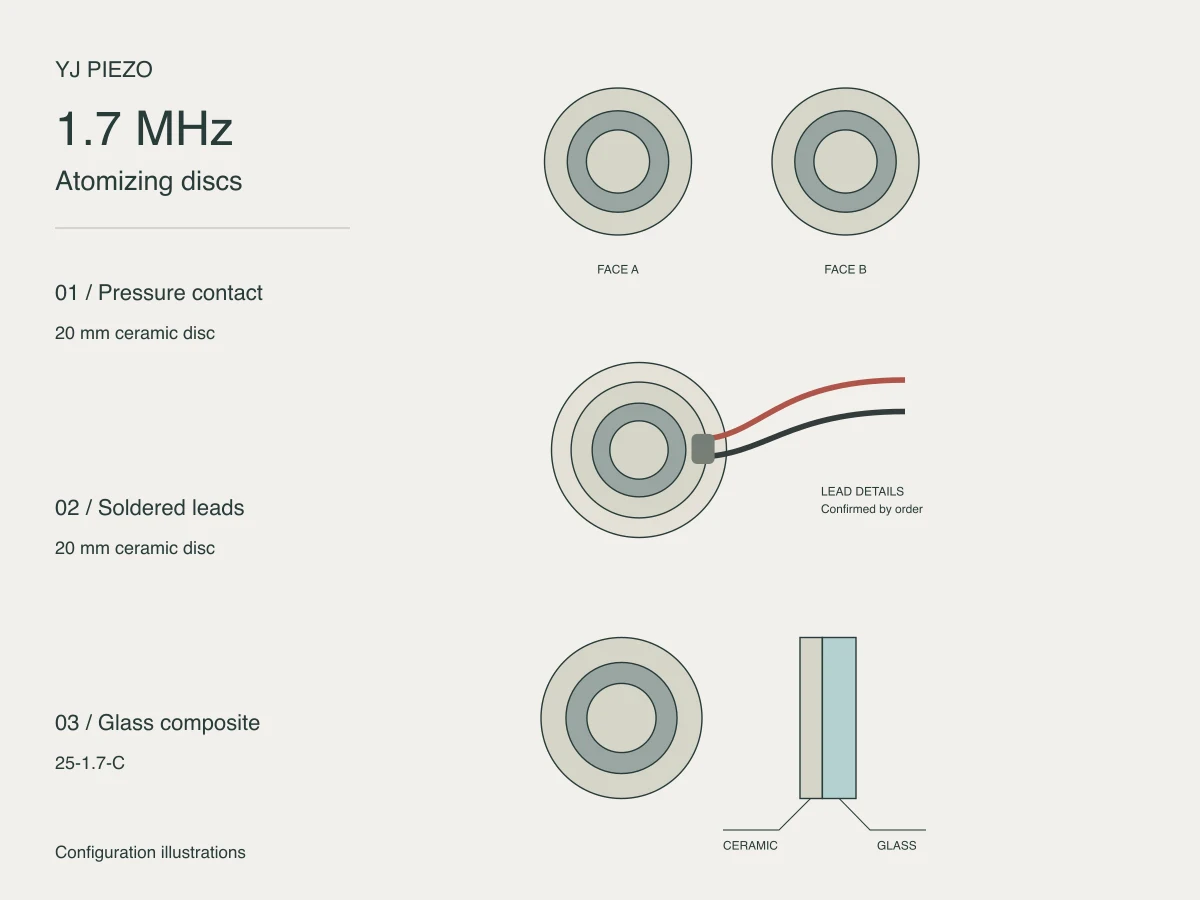

Choose your configuration

01 / Pressure contact

20 mm Pressure Contact Atomizing Disc

02 / Soldered leads

20 mm Wired Atomizing Disc

03 / Pressure contact

25 mm Glass Composite Atomizing Disc

The wired version lists the ceramic disc dimensions. Its holder envelope and lead length are confirmed separately. For the glass composite version, the assembly dimensions include the bonded glass layer.

Start with the disc and driver together

Share your application, connection preference, liquid, water depth, driver frequency and waveform, mounting arrangement, duty cycle and quantity. We will review the configuration and sample requirements with you.

MOQ, sample availability, lead time and test documentation are confirmed for the project. Atomization output depends on the complete assembly and operating conditions.

Component selection notes

Use these discs in a matched ultrasonic assembly. The ceramic element, holder, seal and drive conditions all affect the result. A shared nominal frequency does not establish interchangeability.

The catalog atomization reference is listed only for the pressure contact and glass composite versions. Finished-device performance and any medical or regulatory suitability require separate validation.
