20 mm Pressure Contact Atomizing Disc

A 1.7 MHz PZT atomizing disc for pressure contact installation in OEM ultrasonic humidification and mist-generation equipment. Review the frequency window, contact geometry and driver before selecting samples.

Features & Applications

Specification status: Catalog data has been reviewed, but design-critical values and production tolerances must be confirmed during the RFQ review.

Technical Specifications

Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.

Application Fit

•Ultrasonic humidifier component development
•Water-mist and decorative fog-generation assemblies
•OEM atomizing equipment with an independently matched driver and holder

Features

✔20 mm ceramic disc with a 1.7 ± 0.07 MHz thickness-resonance window
✔Pressure contact configuration for integration into a matching holder
✔Catalog dynamic impedance ≤2 Ω and free capacitance 1600 pF ± 20%

Applications

•Ultrasonic humidifier component development
•Water-mist and decorative fog-generation assemblies
•OEM atomizing equipment with an independently matched driver and holder

Need Engineering Support for 20-1.7M Pressure Contact?

Send the disc configuration, driver frequency and waveform, liquid, water depth, mounting arrangement, duty cycle and quantity.

Engineering Tools and Supplier Resources

Estimate common PZT design parameters before sending an RFQ.

See material control, customization scope, and engineering support.

Review material grades and selection criteria.

Engineering Links

Browse the wider product family and compare adjacent models.

Request Specifications & Pricing for 20-1.7M Pressure Contact

Get detailed datasheets, OEM pricing, and lead time for the 20-1.7M Pressure Contact. MOQ and sample availability are confirmed after configuration and quantity review. Confirm the required specification drawing, electrical checks and any batch documentation when requesting a quotation.

The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.

Match the disc to your complete assembly

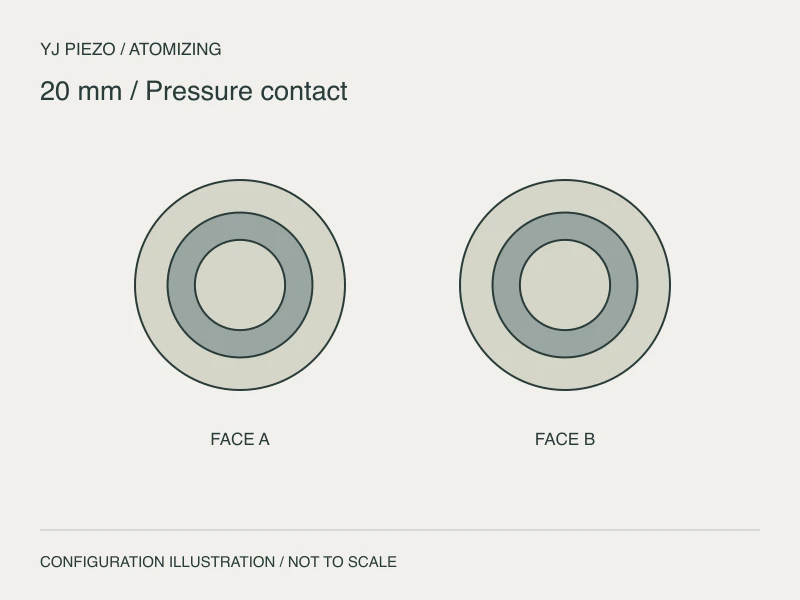

Confirm driver frequency and waveform, voltage, liquid, water depth, sealing, mounting pressure and duty cycle before sample approval. Final dimensions and lead details are confirmed on the order drawing. Configuration drawings are illustrative and are not to scale.

The Curie temperature is a ceramic material property, not an operating-temperature rating. Where listed, the catalog atomization rate is a reference for validation in the complete assembly. Finished-device performance and any medical or regulatory suitability require separate evaluation.

Key Specifications

Performance

Thickness Resonance Frequency	1.7 ± 0.07 MHz
Dynamic Resonance Impedance	≤2 Ω
Free Capacitance	1600 pF ± 20%
Thickness Coupling Coefficient (Kt)	≥42%
Curie Temperature (Material Property)	≥300°C
Electrode Pull Test Load	≥500 g
Catalog Atomization Reference	≥400 mL/h; output depends on the complete assembly and test conditions
Catalog Test Environment	25 ± 5°C; relative humidity 48–80%; atmospheric pressure 86–106 kPa

Mechanical

Ceramic Disc Dimensions	Ø20 ± 0.3 × 1.23 ± 0.05 mm

Integration

Connection / Installation	Pressure contact

Procurement

MOQ / Sample Policy	MOQ and sample availability are confirmed after configuration and quantity review.PROJECT-SPECIFIC
Sample Lead Time	Sample lead time is confirmed after the driver, mounting and test requirements are reviewed.PROJECT-SPECIFIC
Production Lead Time	Production lead time is quoted after configuration, quantity and the order drawing are confirmed.PROJECT-SPECIFIC
Customization Scope	Requested changes to contact method, lead length, mounting envelope and electrical targets are reviewed for feasibility.PROJECT-SPECIFIC
Available Documents & Reports	Confirm the required specification drawing, electrical checks and any batch documentation when requesting a quotation.PROJECT-SPECIFIC
