Yujie Piezoelectric Supplier Ceramics, Discs, Rings, Custom Components
Comprehensive piezoelectric component supplier serving OEMs worldwide with complete product portfolio from raw ceramics to finished assemblies. Custom solutions, rapid prototyping, and volume production capabilities.
Features & Applications
6
Published PZT Grades
6+
Component Shapes
Drawing-Based
Tolerance Review
Per Project
Batch & Schedule
Complete Piezoelectric Product Matrix
From basic ceramic elements to complex assemblies, our comprehensive product range serves diverse applications with standard and custom configurations to meet specific requirements.
Piezoelectric Discs
Circular Elements
Specifications:
- Diameter: 5-100mm
- Thickness: 0.2-10mm
- Standard & custom sizes
Applications:
- Buzzers & speakers
- Pressure sensors
- Ultrasonic cleaners
- +1 more applications
Piezoelectric Rings
Annular Elements
Specifications:
- OD: 10-150mm
- Wall thickness: 1-20mm
- ID/OD ratios optimized
Applications:
- Atomizing transducers
- Underwater sonar
- Flow measurement
- +1 more applications
Piezoelectric Plates
Rectangular Elements
Specifications:
- Length/Width: 5-200mm
- Thickness: 0.5-20mm
- Custom aspect ratios
Applications:
- Actuators & motors
- Energy harvesting
- Vibration control
- +1 more applications
Specifications:
- Multi-dimensional
- Complex geometries
- High precision machining
Applications:
- Multi-axis actuators
- Specialized transducers
- Research applications
- +1 more applications
Multi-layer Stacks
Composite Structures
Specifications:
- 2-50 layers
- Bonded assemblies
- Optimized for displacement
Applications:
- High-displacement actuators
- Precision positioning
- Valve control
- +1 more applications
Assembly Components
Ready-to-Use Units
Specifications:
- With electrodes
- Lead wire attachments
- Protective housings
Applications:
- Plug-and-play integration
- OEM assemblies
- Prototype development
- +1 more applications
Available Variants:
Choose by geometry
Start from the element shape your design already implies
Most piezo component RFQs resolve to one of three base geometries. Each shape page carries dimensional ranges, mode behavior, and the RFQ inputs we need for that geometry.
- Piezo discsThickness-mode workhorse for cleaning, flow, and sensing; radial modes set the diameter floor.
- Piezo ringsBolt-clamped power stacks and preloaded assemblies; ID/OD ratio drives the frequency plan.
- Piezo tubesRadial transmit-receive and scanning elements; wall thickness sets sensitivity limits.
Advanced Technical Capabilities
Our technical expertise spans material science, precision manufacturing, and application engineering to deliver optimized piezoelectric solutions for diverse industrial requirements.
Material Formulations
6 Core PZT Types
- Soft PZT (High d33): P-51, P-52 for sensors
- Hard PZT (High Qm): P-44, P-81 for power applications
- Custom compositions: Tailored Zr/Ti ratios
- Dopant optimization: Nb, La, Ba additions
Dimensional Precision
- CNC machining capabilities
- Diamond wire cutting for thin sections
- Ultrasonic drilling for complex geometries
- Surface finish reviewed against the application
Frequency Range
Model & Geometry Dependent
- Published transducer models span 14.9 kHz to 5 MHz
- Ceramic resonance depends on shape, dimensions, and mode
- Finished-device frequency depends on mounting and acoustic load
- Target and tolerance are confirmed during engineering review
Operating Conditions
Application-Defined
- Wide temperature stability
- Humidity resistance options
- Vibration-resistant designs
- Long-term reliability testing
Research & Development
- ✓Material characterization lab
- ✓Prototype development services
- ✓Application-specific optimization
- ✓Performance validation testing
Electrical Design
- ✓Electrode pattern design
- ✓Wire lead configurations
- ✓Impedance matching solutions
- ✓Multi-channel designs
Custom Engineering Services
- ✓Mechanical integration design
- ✓Environmental sealing
- ✓Assembly & packaging
- ✓Technical consultation
Custom Manufacturing Capabilities
Custom piezoelectric components, elements, and actuator ceramics for OEM programs
Yujie supports custom piezoelectric transducer elements and piezoelectric components when a standard catalog shape does not fit the device. For piezo actuator manufacturer searches, the right fit is custom ceramic plates, blocks, stacks, benders, or motion-control elements supplied as OEM components, not a generic finished actuator stage.
Custom Piezoelectric Component Design
Adjust diameter, thickness, length, inner diameter, curvature, electrode pattern, metallization, lead wires, and mounting features for discs, rings, plates, tubes, stacks, and special ceramic geometries.
Material and Performance Targeting
Select PZT-4, PZT-5A, PZT-5H, PZT-8 style grades or custom formulations around sensitivity, Qm, dielectric loss, Curie temperature, capacitance, impedance, and resonance targets.
Prototype to Production Support
Move from application review to sample validation, outgoing impedance or capacitance records, dimensional inspection, pilot batches, and volume production with traceability requirements agreed upfront.
Manufacturing Scope
Batch planning follows material, dimensions, electrode, and inspection requirements
Assembly and validation scope is confirmed against the final interface and operating conditions
Pilot and production quantities are quoted after drawing and process review
Agreed Inspection Plan
- • Dimensional checks against the approved drawing
- • Electrical parameter testing
- • Visual criteria agreed for the component form
- • Batch records based on the quotation requirements
Available Validation Scope
- • Frequency and impedance characterization
- • Capacitance and electrical checks
- • Dimensional and appearance inspection
- • Additional validation reviewed per application
Engineering Team
Practical experience in piezoelectric materials and applications engineering since 1996
Production Team
Skilled technicians with specialized training in precision ceramic manufacturing
Quality Team
Dedicated QA specialists ensuring compliance with international standards
Material
Grade and lot requirements
Geometry
Drawing and tolerance review
Electrical
Electrode and target values
Records
Inspection and traceability needs
Success Stories & Application Cases
Real-world examples of how our piezoelectric solutions have enabled customer success across diverse industries and applications.
Ultrasonic Welding Equipment
Leading Equipment Manufacturer
Challenge
Required high-power PZT rings with high thermal stability for 40kHz welding transducers
Solution
Custom P-81 hard PZT formulation with enhanced thermal cycling resistance and optimized Q factor
Results
- 50% improvement in power handling capability
- Extended service life from 6 to 18 months
- Reduced maintenance costs by 40%
- Consistent performance across temperature range
B-Ultrasound Imaging System
Medical Device OEM
Challenge
Needed highly sensitive piezoelectric elements for 2-8MHz imaging with enhanced resolution
Solution
Precision-machined P-52 soft PZT discs with custom electrode patterns and impedance matching
Results
- 25% increase in imaging sensitivity
- Enhanced image resolution and clarity
- Improved penetration depth capability
- FDA-compliant manufacturing process
Engine Knock Sensor Array
Tier-1 Automotive Supplier
Challenge
Required miniaturized sensors with high sensitivity and resistance to automotive environment
Solution
Specialized P-51 ceramic elements with protective coatings and vibration-resistant designs
Results
- 30% size reduction vs. previous design
- Enhanced signal-to-noise ratio
- Proven durability through automotive testing
- Cost-effective manufacturing at scale
Haptic Feedback Systems
Global Consumer Electronics Brand
Challenge
Ultra-thin actuators for smartphone haptic feedback with precise force control
Solution
Multi-layer PZT stacks with optimized thickness and custom bonding process
Results
- Achieved target thickness of <2mm
- Precise tactile response control
- High reliability through drop testing
- Scaled to millions of units annually
Ready to Discuss Your Application?
Our application engineers are ready to help you develop the optimal piezoelectric solution for your specific requirements. From concept to production, we provide comprehensive support.
Your Trusted Piezoelectric Components Supplier
Comprehensive product range, custom solutions, and reliable global supply chain for your piezoelectric needs.
Frequently Asked Questions
- Do you support custom piezoelectric components and transducer elements?
- Yes. Yujie supports custom piezoelectric components including discs, rings, plates, tubes, blocks, stacks, benders, electrode patterns, metallization, lead wires, and assembly-ready ceramic elements. The engineering review starts from your target frequency, geometry, electrical limits, operating medium, and production volume.
- Are you suitable for piezo actuator manufacturing projects?
- Yujie can support piezo actuator projects at the ceramic component level, including plates, blocks, stacks, benders, and custom motion-control elements. We avoid presenting a generic finished actuator stage unless the application requirements, displacement target, load, driver condition, and integration boundary have been reviewed.
- What piezoelectric component shapes do you manufacture?

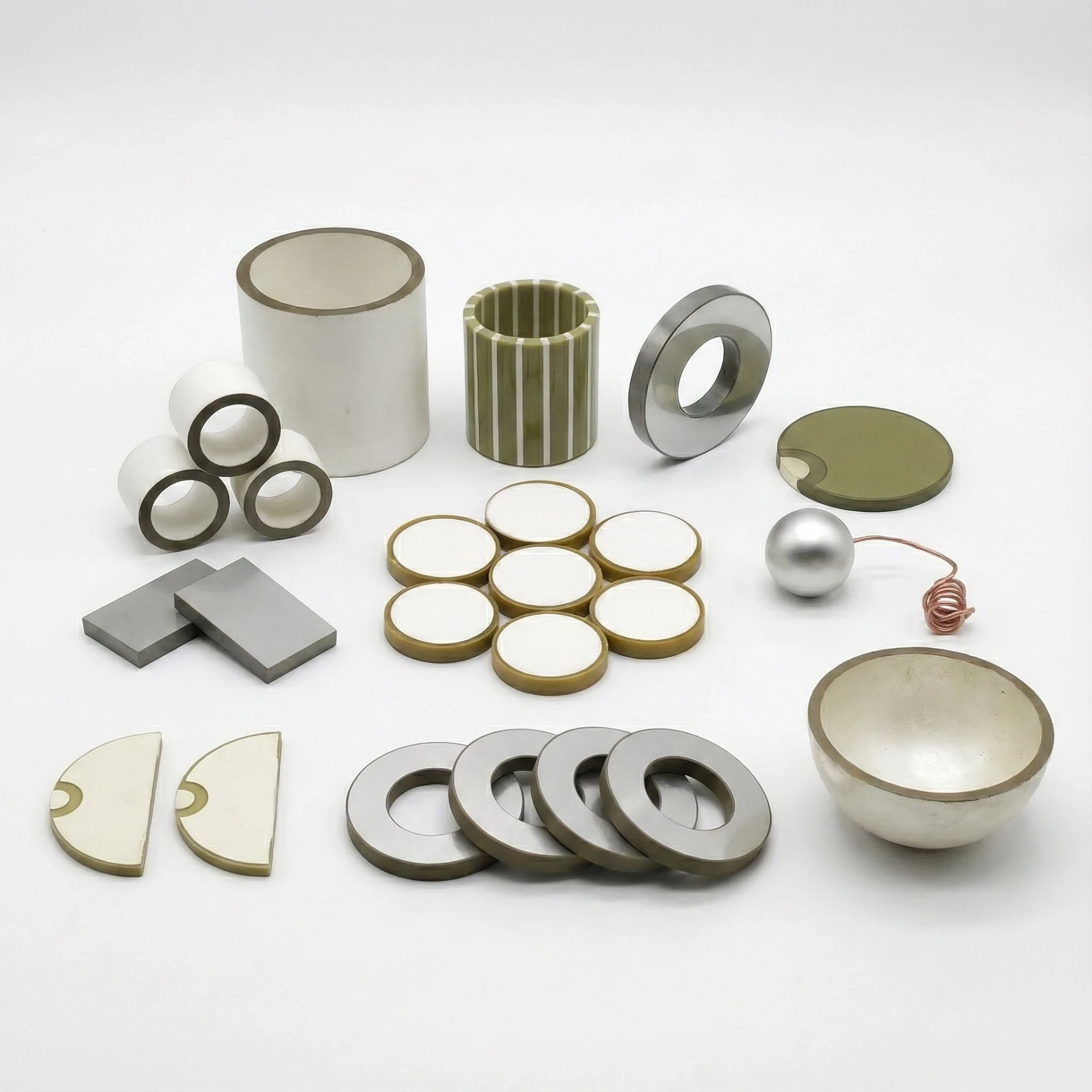

- We manufacture discs, rings, plates, tubes, hollow spheres, and custom geometries. Standard shapes available from stock, custom shapes manufactured to your specifications with precision machining.
- Do you provide OEM customization services?
- Yes, we offer comprehensive OEM services including custom shapes, dimensions, electrode configurations, and packaging. Our engineering team works directly with your specifications and requirements.
- How are sample quantities, production quantities, and schedules confirmed?
- They are confirmed after the geometry, material, electrode, electrical targets, inspection needs, and quantity are reviewed. Some validated catalog builds can start with smaller engineering quantities, while custom tooling or special processes require a project-specific production plan.
- Can you provide samples for testing?
- Yes. For a sample review, send the closest catalog model or drawing, target material, electrical requirements, operating environment, and quantity. Availability, cost, test records, and dispatch timing are then confirmed for that specific build.
- What quality certifications do you have?
- Dimensional inspection, electrical characterization, and agreed performance checks can be included in the quality plan. Share the certificate, inspection report, or traceability requirements with the RFQ so the applicable document set can be confirmed before quotation.
- Do you ship internationally?
- We support international shipments and coordinate export documentation and protective packaging according to the product, destination, and agreed delivery terms.
- What technical specifications can you achieve?
- Published catalog model specifications currently span 14.9 kHz to 5 MHz. Component-level capacitance, resonance, electrode, geometry, and tolerance targets are reviewed against the selected material and finished-device operating conditions.
- Do you offer application engineering support?
- Yes, we provide application engineering support including component selection, circuit design recommendations, and performance optimization for your specific piezoelectric applications.
Key Specifications
Manufacturing Scope
| Piezoelectric Ceramic Chips | Geometry-led |
|---|---|
| Ultrasonic Transducers | Application-led |
| Custom Components | Project-specific |
Project Schedule
| Standard Products | Availability check |
|---|---|
| Modified Standard | Drawing review |
| Full Custom Design | Validation plan |
| Production Batch | Order confirmation |
