20 mm Wired Atomizing Disc

A 20 mm PZT atomizing disc with soldered leads for OEM ultrasonic mist-generation equipment. The listed ceramic dimensions are separate from the holder envelope; lead length and the final assembly drawing are confirmed for your order.

Features & Applications

Specification status: Catalog data has been reviewed, but design-critical values and production tolerances must be confirmed during the RFQ review.

Technical Specifications

Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.

Application Fit

• •Ultrasonic humidifier component development
• •Water-mist and decorative fog-generation assemblies
• •OEM atomizing equipment with an independently matched driver and holder

Features

• ✔Soldered leads for connection to a compatible external driver
• ✔1.7 ± 0.10 MHz resonance window and dynamic impedance ≤2.5 Ω
• ✔Catalog operating temperature of 5–50°C

Applications

• •Ultrasonic humidifier component development
• •Water-mist and decorative fog-generation assemblies
• •OEM atomizing equipment with an independently matched driver and holder

Need Engineering Support for 20-1.7M Wired?

Send the disc configuration, driver frequency and waveform, liquid, water depth, mounting arrangement, duty cycle and quantity.

Engineering Tools and Supplier Resources

Estimate common PZT design parameters before sending an RFQ.

See material control, customization scope, and engineering support.

Review material grades and selection criteria.

Engineering Links

Browse the wider product family and compare adjacent models.

Request Specifications & Pricing for 20-1.7M Wired

Get detailed datasheets, OEM pricing, and lead time for the 20-1.7M Wired. MOQ and sample availability are confirmed after configuration and quantity review. Confirm the required specification drawing, electrical checks and any batch documentation when requesting a quotation.

The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.

Match the disc to your complete assembly

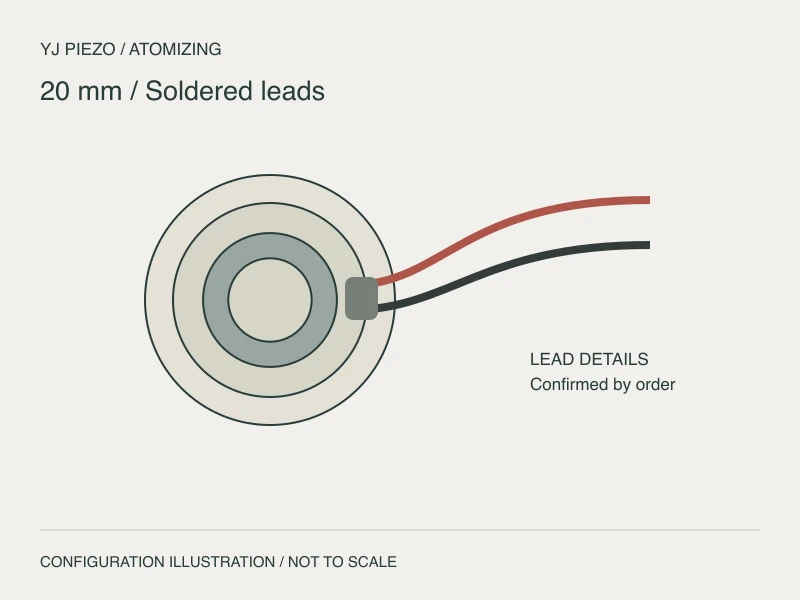

Confirm driver frequency and waveform, voltage, liquid, water depth, sealing, mounting pressure and duty cycle before sample approval. Final dimensions and lead details are confirmed on the order drawing. Configuration drawings are illustrative and are not to scale.

The Curie temperature is a ceramic material property, not an operating-temperature rating. Where listed, the catalog atomization rate is a reference for validation in the complete assembly. Finished-device performance and any medical or regulatory suitability require separate evaluation.
