Does the atomizing disc include a driver board?

These listings describe the atomizing disc configurations. Share your driver frequency, waveform, voltage and mounting arrangement so we can review compatibility and the required supply scope.

How should I compare the 20 mm and 25 mm versions?

Compare the ceramic dimensions, complete mounting envelope, electrical connection and resonance window. The 25-1.7-C is a glass composite assembly; it is not a larger direct replacement for either 20 mm disc.

Is the listed atomization rate guaranteed in my equipment?

The 400 mL/h value listed for the pressure contact and glass composite versions is a catalog reference. The catalog does not define the complete driver, water depth or liquid conditions for that output. Confirm performance in your assembly during sample evaluation. No atomization rate is listed for the wired version.

Can I request samples or a production quotation?

Yes. Send the configuration, application, driver information, liquid, mounting requirements and quantity. Sample availability, MOQ, lead time and any requested test documentation are confirmed for the project.

25 mm Glass Composite Atomizing Disc

The YJ Piezo 25-1.7-C combines a 25 mm PZT ceramic element with a bonded glass layer for OEM ultrasonic atomizing assemblies. Compare the ceramic and composite dimensions, pressure contact interface and electrical specifications before driver matching.

Features & Applications

Specification status: Catalog data has been reviewed, but design-critical values and production tolerances must be confirmed during the RFQ review.

Technical Specifications

Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.

Application Fit

•Ultrasonic humidifier component development
•Water-mist and decorative fog-generation assemblies
•OEM atomizing equipment with an independently matched driver and holder

Features

✔Bonded ceramic and glass construction with a nominal 3.0 mm composite thickness
✔Pressure contact installation with a 1.7 ± 0.07 MHz resonance window
✔Catalog dynamic impedance ≤3 Ω and free capacitance 1700 pF ± 20%

Applications

•Ultrasonic humidifier component development
•Water-mist and decorative fog-generation assemblies
•OEM atomizing equipment with an independently matched driver and holder

Need Engineering Support for 25-1.7-C?

Send the disc configuration, driver frequency and waveform, liquid, water depth, mounting arrangement, duty cycle and quantity.

Engineering Tools and Supplier Resources

Estimate common PZT design parameters before sending an RFQ.

See material control, customization scope, and engineering support.

Review material grades and selection criteria.

Engineering Links

Browse the wider product family and compare adjacent models.

Request Specifications & Pricing for 25-1.7-C

Get detailed datasheets, OEM pricing, and lead time for the 25-1.7-C. MOQ and sample availability are confirmed after configuration and quantity review. Confirm the required specification drawing, electrical checks and any batch documentation when requesting a quotation.

The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.

Match the disc to your complete assembly

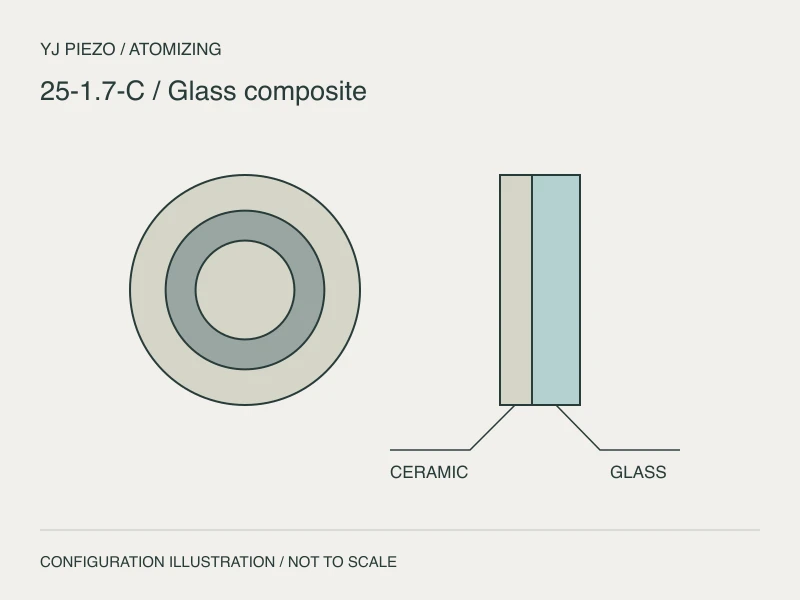

Confirm driver frequency and waveform, voltage, liquid, water depth, sealing, mounting pressure and duty cycle before sample approval. Final dimensions and lead details are confirmed on the order drawing. Configuration drawings are illustrative and are not to scale.

The Curie temperature is a ceramic material property, not an operating-temperature rating. Where listed, the catalog atomization rate is a reference for validation in the complete assembly. Finished-device performance and any medical or regulatory suitability require separate evaluation.

Key Specifications

Performance

Glass Layer Thickness	1.8 ± 0.15 mm
Thickness Resonance Frequency	1.7 ± 0.07 MHz
Dynamic Resonance Impedance	≤3 Ω
Free Capacitance	1700 pF ± 20%
Thickness Coupling Coefficient (Kt)	≥40%
Curie Temperature (Material Property)	≥300°C
Electrode Pull Test Load	≥500 g
Catalog Atomization Reference	≥400 mL/h; output depends on the complete assembly and test conditions
Catalog Test Environment	25 ± 5°C; relative humidity 48–80%; atmospheric pressure 86–106 kPa

Mechanical

Composite Assembly Dimensions	Ø25.3 ± 0.3 × 3.0 ± 0.15 mm
Ceramic Disc Dimensions	Ø25 ± 0.3 × 1.20 ± 0.02 mm

Integration

Connection / Installation	Pressure contact

Procurement

MOQ / Sample Policy	MOQ and sample availability are confirmed after configuration and quantity review.PROJECT-SPECIFIC
Sample Lead Time	Sample lead time is confirmed after the driver, mounting and test requirements are reviewed.PROJECT-SPECIFIC
Production Lead Time	Production lead time is quoted after configuration, quantity and the order drawing are confirmed.PROJECT-SPECIFIC
Customization Scope	Requested changes to contact method, lead length, mounting envelope and electrical targets are reviewed for feasibility.PROJECT-SPECIFIC
Available Documents & Reports	Confirm the required specification drawing, electrical checks and any batch documentation when requesting a quotation.PROJECT-SPECIFIC
