Precision Ultrasonic Transducer 200 kHz Distance Sensor | KQ-200KH-2

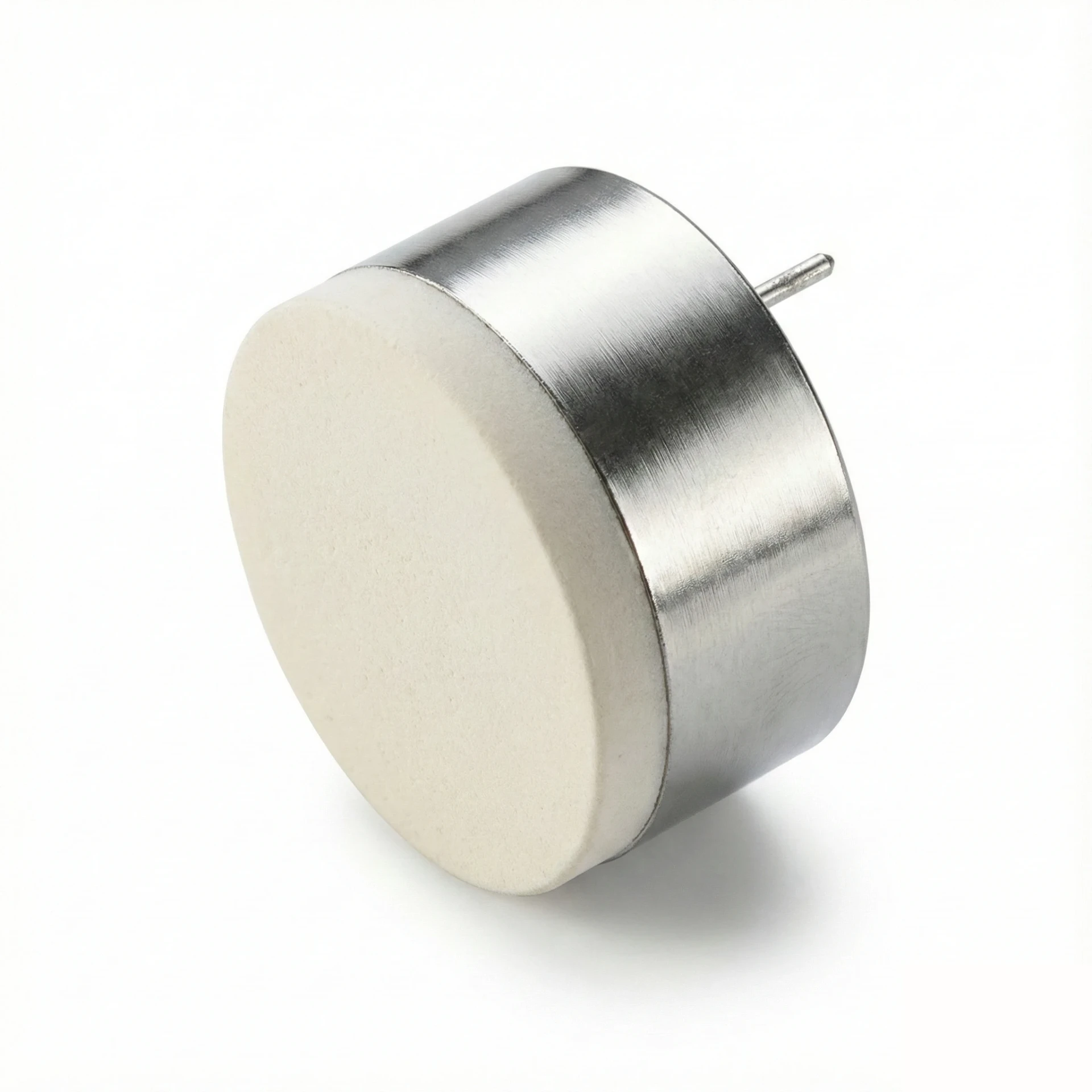

The Yujie KQ-200KH-2 is a precision 200 kHz ultrasonic transducer for robotics, position tracking, and industrial distance measurement. Its 7° beam control, short dead zone, and compact aluminum-alloy package make it suitable for tightly constrained sensing heads and short-range automation tasks.
Features & Applications
Specification status: Preliminary catalog specifications. Confirm all design-critical values with engineering before design freeze.
Technical Specifications
Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.
Application Fit
- •Position measurement and real-time automation feedback
- •Robot navigation, AGV obstacle avoidance, and approach control
- •Flow measurement and process-sensing assemblies
- •Traffic monitoring and smart industrial distance sensing
Features
- ✔Ultra-narrow 7° beamwidth for tighter distance measurement and position tracking
- ✔Compact aluminum-alloy housing with IP65 protection for industrial use
- ✔Short dead zone below 12 cm for close-range robotics and automation tasks
- ✔Simple 7 mm contact-pin connection for assembly and service access
- ✔200 kHz platform tuned for focused echo behavior in compact sensing heads
Applications
- •Position measurement and real-time automation feedback
- •Robot navigation, AGV obstacle avoidance, and approach control
- •Flow measurement and process-sensing assemblies
- •Traffic monitoring and smart industrial distance sensing
Need Engineering Support for KQ-200KH-2?
Share target range, beam angle, environment, housing constraints, and driver conditions to receive a matched quote.
Engineering Tools and Supplier Resources
Estimate common PZT design parameters before sending an RFQ.
See material control, customization scope, and engineering support.
Review material grades and selection criteria.
Request Specifications & Pricing for KQ-200KH-2
Get detailed datasheets, OEM pricing, and lead time for the KQ-200KH-2. MOQ is project-specific and confirmed after the model, housing, and validation scope are reviewed. We can usually provide outgoing frequency / impedance data, sensitivity checks, and batch-level QC records for validation.
The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.
Key Specifications
Performance
| Model | KQ-200KH-2 |
|---|---|
| Center Frequency | 200 kHz ± 3% |
| Sensitivity | -56 dB min (0 dB=20 Vp-p, Term: 50Ω, Range: 20cm) |
| Detection Range | 0.12 m - 2 m |
| Transmitting Beam Angle (-3dB) | 7° ± 2° |
| Capacitance | 500 pF ± 100 pF |
Mechanical
| Dimensions | Ø19 × 11 mm |
|---|---|
| Housing Material | Aluminium Alloy |
| Weight | 10 g |
Operating Limits
| Dead Zone | < 0.12 m |
|---|---|
| Minimum Parallel Impedance | 250 Ω ± 30% |
| Max Working Voltage | < 500V Pulse (Duty Cycle 2%) |
| Operating Temperature | -20°C to 70°C |
| Protection Class | IP65 |
Integration
| Connection | 7mm Contact Pin |
|---|
Procurement
| MOQ / Sample Policy | MOQ is project-specific and confirmed after the model, housing, and validation scope are reviewed.PROJECT-SPECIFIC |
|---|---|
| Sample Lead Time | Sample availability and lead time are confirmed after range, beam angle, and housing requirements are reviewed.PROJECT-SPECIFIC |
| Production Lead Time | Production lead time is quoted after quantity, tooling fit, and customization depth are confirmed.PROJECT-SPECIFIC |
| Customization Scope | Typical custom options include center frequency, beam control, cable or pin interface, housing material, and environmental sealing.PROJECT-SPECIFIC |
| Available Documents & Reports | We can usually provide outgoing frequency / impedance data, sensitivity checks, and batch-level QC records for validation.PROJECT-SPECIFIC |
