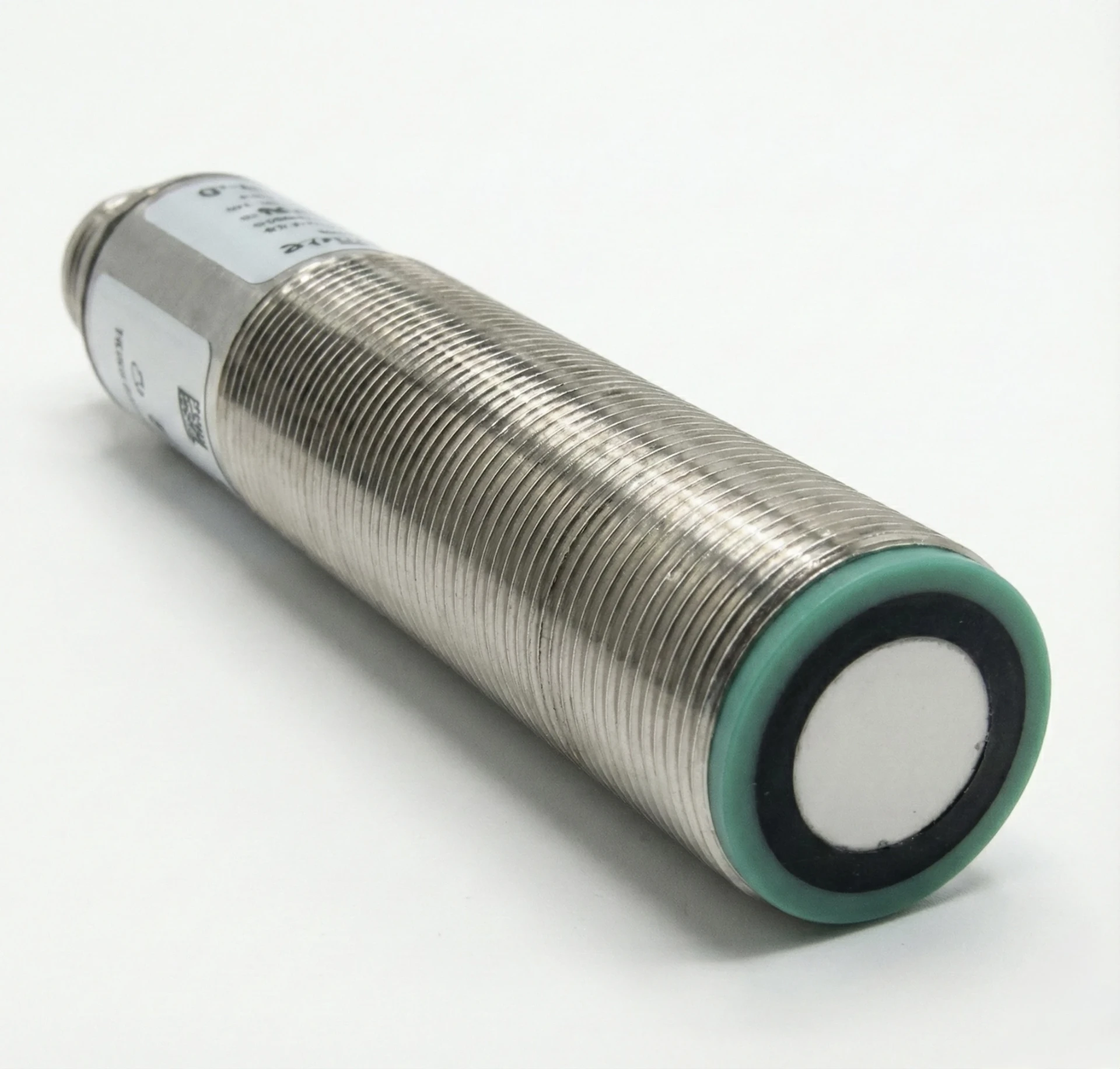

Yujie MU18 Ultrasonic Sensor
The Yujie MU18 series ultrasonic sensors adopt a non-contact measurement method and provide reliable short-range distance measurement even in harsh industrial environments. The sensor features temperature compensation and a visible LED indicator, and supports battery power. It is ideal for applications that require a small blind zone and high resolution, such as robotics positioning and bin level measurement. Digital signal processing ensures stable operation in automation and IoT systems while improving measurement accuracy.
Features & Applications
Technical Specifications
Each product is organized for procurement review: core performance, fit and mounting, operating limits, integration notes, and RFQ-ready supply terms.
Application Fit
- •Level, distance and positioning measurement
- •Monitoring containers and silos
- •Goods management and factory automation
- •Position detection and limit control
- •Collision avoidance and robot obstacle detection
- •Robotics positioning systems
- •Bin level measurement
- •IoT automation systems
Features
- ✔Non-Contact Measurement – Reliable sensing without physical contact
- ✔Temperature Compensation – Built-in for accurate readings in varying conditions
- ✔Small Blind Zone – Ideal for close-range applications
- ✔Battery Power Support – Suitable for mobile or low-power systems
- ✔Visible LED Indicator – Easy on-site status monitoring
- ✔Digital Signal Processing – Stable operation with improved accuracy
Applications
- •Level, distance and positioning measurement
- •Monitoring containers and silos
- •Goods management and factory automation
- •Position detection and limit control
- •Collision avoidance and robot obstacle detection
- •Robotics positioning systems
- •Bin level measurement
- •IoT automation systems
Need Engineering Support for MU18 Ultrasonic Sensor?
Share sensing range, target type, output requirement, housing constraints, and environmental conditions for an RFQ-ready recommendation.
Request Specifications & Pricing for MU18 Ultrasonic Sensor
Get detailed datasheets, OEM pricing, and lead time for the MU18 Ultrasonic Sensor. Sensor evaluation MOQ typically starts from 10 pcs for standard models, depending on interface and housing choice. Available documents generally include outgoing functional QC data, electrical checks, and batch inspection records.
Need Help Selecting the Right Ultrasonic Sensor?
Our team of experts can help you choose the perfect ultrasonic sensor for your specific industrial automation needs.
Key Specifications
Performance
| Measuring Range | 100-1000 mm |
|---|---|
| TECH-IN Technology | Digital signal processing for stable and accurate measurement |
| Power Options | Supports battery power, suitable for mobile or low-power systems |
| Blind Zone | Small blind zone, ideal for close-range distance measurement |
Mechanical
| Dimensions | Φ18 × 80 mm or Φ30 × 95 mm |
|---|---|
| Housing Material | Nickel-plated brass, IP67 protection grade |
| Configuration | TECH-IN and software configuration (digital output) |
Operating Limits
| Operating Voltage | 10-30 V DC / 4.2-5.5 V DC |
|---|---|
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Temperature Compensation | Built-in temperature compensation maintains accuracy under changing temperatures |
Integration
| Output Types | 1 PNP switching output, 1 analog output (voltage or current), 1 digital output (RS232/485 or UART TTL) |
|---|---|
| Electrical Interface | V1 connector, M12 4-pin |
| LED Indicator | Visible LED status indicator for easy on-site monitoring |
Procurement
| MOQ / Sample Policy | Sensor evaluation MOQ typically starts from 10 pcs for standard models, depending on interface and housing choice. |
|---|---|
| Sample Lead Time | Standard sample lead time is usually 5-10 working days after output type and environment requirements are confirmed. |
| Production Lead Time | Typical production lead time is 3-5 weeks depending on quantity, interface changes, and housing customization. |
| Customization Scope | Common OEM options include output type, cable or connector interface, sensing window, housing material, and sealing level. |
| Available Documents & Reports | Available documents generally include outgoing functional QC data, electrical checks, and batch inspection records. |
