Ultrasonic Depth Sounder Transducer 200 kHz Marine Sonar | HJ200KH-P

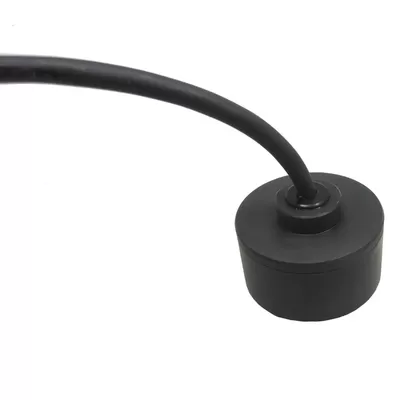

The Yujie HJ200KH-P is a compact and cost-effective depth sounder transducer, specifically designed for small vessels, underwater positioning, and depth measurement in seas, rivers, and lakes. Operating at 200 kHz ± 5% with a powerful 250W rated RMS power output, this transducer ensures exceptional high-speed performance up to 55 knots (63 MPH) while minimizing turbulence noise with its streamlined plastic housing. Featuring a 13° beamwidth and quality factor of 13, it delivers precise echo sounding with 155 dB transmission response and -181 dB reception response. The circular PZT element (Ø27 mm) provides reliable depth detection with 900 pF free capacitance and 1.2 kΩ parallel impedance. With a lightweight 400g design and 2-meter cable, it's perfect for recreational fishing boats, small yachts, and marine exploration applications requiring accurate depth measurement in various water conditions.

Features & Applications

Specification status: Preliminary catalog specifications. Confirm all design-critical values with engineering before design freeze.

Technical Specifications

Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.

Application Fit

• •Small Vessel Echo Sounders: Accurate depth measurement for boats, yachts, and fishing vessels
• •Underwater Positioning & Mapping: Used for marine exploration and hydrographic surveys
• •Fishing & Aquaculture: Detects underwater features and locates fish habitats

Features

• ✔Compact & Cost-Effective Design – Ideal for small boats and general-purpose echo sounding applications
• ✔High-Speed Performance – Works efficiently at speeds up to 55 knots (63 MPH), ensuring reliable depth measurement
• ✔Minimized Turbulence Noise – Streamlined plastic housing reduces water resistance and improves acoustic performance
• ✔Optimized for Shallow Water Depth Measurement – Suitable for underwater positioning, fishing, and depth mapping
• ✔Reliable & Durable – Built for marine environments, offering stable performance in fresh and saltwater conditions

Applications

• •Small Vessel Echo Sounders: Accurate depth measurement for boats, yachts, and fishing vessels
• •Underwater Positioning & Mapping: Used for marine exploration and hydrographic surveys
• •Fishing & Aquaculture: Detects underwater features and locates fish habitats

Need Engineering Support for HJ200KH-P?

Provide target depth, saltwater or freshwater use, cable requirements, and mounting details for an RFQ-ready recommendation.

Engineering Tools and Supplier Resources

Estimate common PZT design parameters before sending an RFQ.

See material control, customization scope, and engineering support.

Review material grades and selection criteria.

Request Specifications & Pricing for HJ200KH-P

Get detailed datasheets, OEM pricing, and lead time for the HJ200KH-P. MOQ is project-specific and confirmed after the sealing, cable, and validation scope are reviewed. Available documentation can include outgoing electrical data, waterproof QC records, and basic batch inspection reports.
