Gas Flow Transducer | HJGF-200KH

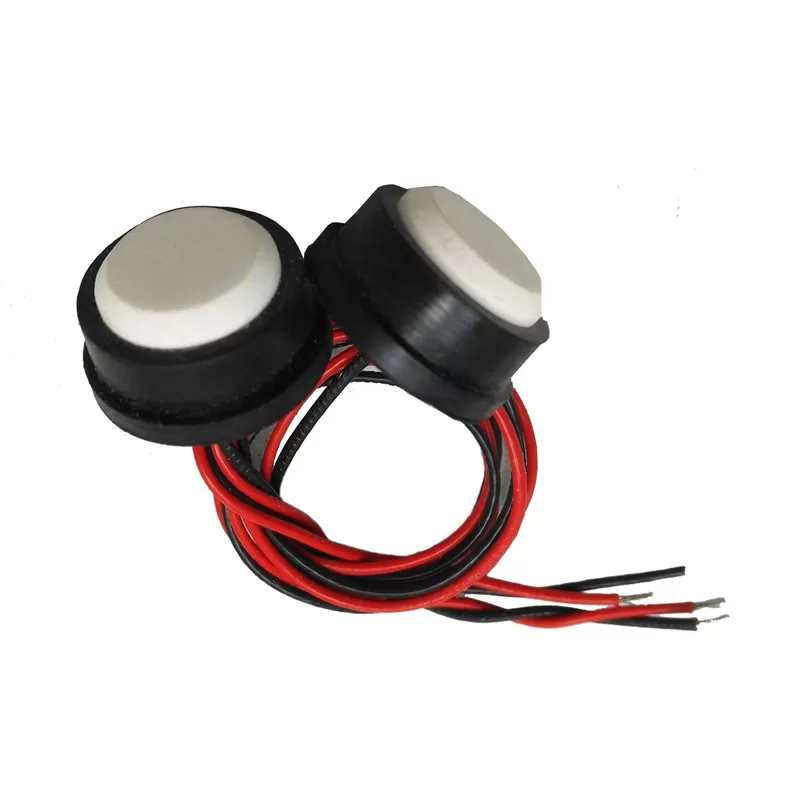

The Yujie HJGF-200KH is a professional-grade ultrasonic gas flow transducer operating at 200 kHz. Engineered for industrial gas flow monitoring, it delivers reliable performance and precise measurements in demanding environments.
Features & Applications
Specification status: Preliminary catalog specifications. Confirm all design-critical values with engineering before design freeze.
Technical Specifications
Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.
Application Fit
- •Natural Gas Metering: Industrial and residential gas flow measurement
- •Biogas Monitoring: Anaerobic digester output measurement and control
- •Compressed Air Systems: Industrial pneumatic system flow monitoring
- •Flare Gas Measurement: Refinery and petrochemical flow applications
- •HVAC Air Flow: Ventilation and air handling system monitoring
- •Emissions Monitoring: Stack gas flow measurement for environmental compliance
Applications
- •Natural Gas Metering: Industrial and residential gas flow measurement
- •Biogas Monitoring: Anaerobic digester output measurement and control
- •Compressed Air Systems: Industrial pneumatic system flow monitoring
- •Flare Gas Measurement: Refinery and petrochemical flow applications
- •HVAC Air Flow: Ventilation and air handling system monitoring
- •Emissions Monitoring: Stack gas flow measurement for environmental compliance
Need Engineering Support for HJGF-200KH?
Send medium type, pressure range, temperature window, pipe or chamber geometry, and quantity to receive a matched quote.
Engineering Tools and Supplier Resources
Estimate common PZT design parameters before sending an RFQ.
See material control, customization scope, and engineering support.
Review material grades and selection criteria.
Engineering Links
Browse the wider product family and compare adjacent models.
Read the matching guide or engineering article for this product family.
HJ-2112/1M Liquid Flow Transducer
1.0 MHz liquid flow model for industrial metering integration.
HJ-2825/1M Liquid Flow Transducer
High-accuracy liquid flow transducer for process monitoring.
Request Specifications & Pricing for HJGF-200KH
Get detailed datasheets, OEM pricing, and lead time for the HJGF-200KH. MOQ is project-specific and confirmed after the meter geometry, medium, and validation scope are reviewed. We can usually provide outgoing frequency / impedance data, QC records, and batch-level consistency documentation.
The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.
Key Specifications
Performance
| Model | HJGF-200KH |
|---|---|
| Resonance Frequency | 200 kHz ± 5% |
| Bandwidth | 20 kHz |
| Sensitivity | 0 dB = 1 Vp-p, Period: 8, Distance: 30 cm, -50 dB min |
| Beam Angle (-3dB Full Angle) | 12° |
| Static Capacitance | 2200 pF ± 20% |
Operating Limits
| Operating Temperature | -30 to 80°C |
|---|---|
| Maximum Operating Pressure | 2.0 MPa |
Procurement
| MOQ / Sample Policy | MOQ is project-specific and confirmed after the meter geometry, medium, and validation scope are reviewed.PROJECT-SPECIFIC |
|---|---|
| Sample Lead Time | Sample availability and lead time are confirmed after pipe geometry, medium, and interface requirements are reviewed.PROJECT-SPECIFIC |
| Production Lead Time | Production lead time is quoted after quantity, sealing, and geometry adjustments are confirmed.PROJECT-SPECIFIC |
| Customization Scope | Custom options usually include beam angle, pressure resistance, housing material, cable interface, and geometry matching for the meter body.PROJECT-SPECIFIC |
| Available Documents & Reports | We can usually provide outgoing frequency / impedance data, QC records, and batch-level consistency documentation.PROJECT-SPECIFIC |
