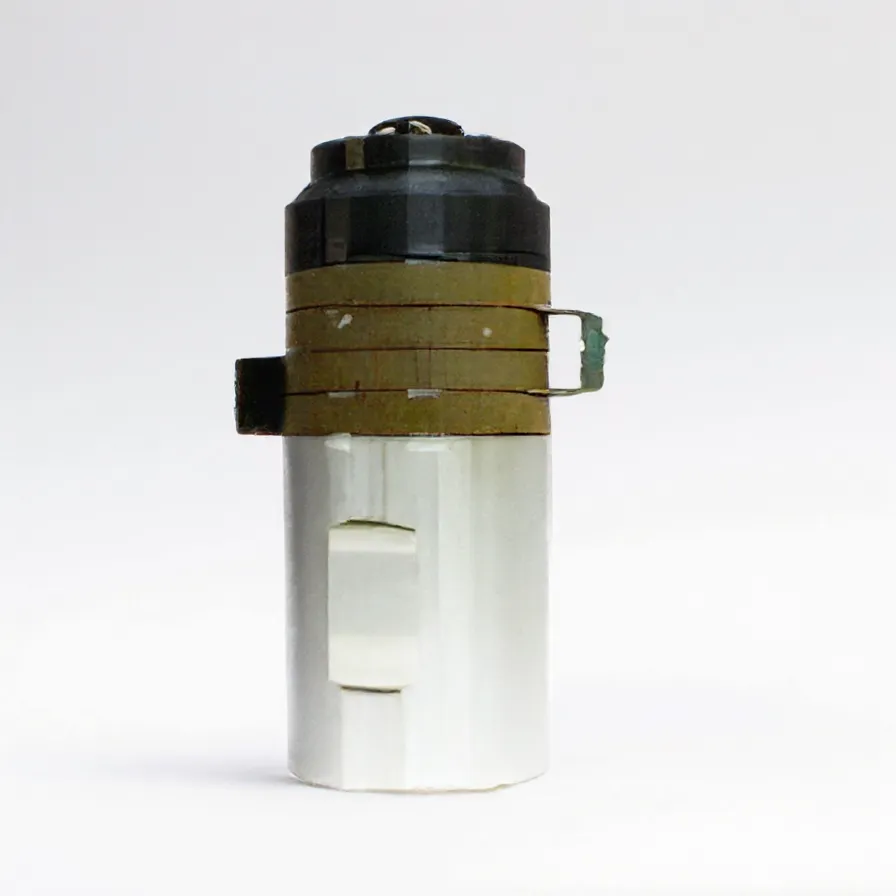

Ultrasonic Welding Transducer 20 kHz 1250W Power | HJ-5020B

The Yujie HJ-5020B ultrasonic welding transducer lists 20.15 kHz and 20.20 kHz resonance values for its available configuration data. With 1250W power output and quad piezoelectric elements, it is designed for industrial welding applications. The low impedance design (≤10 Ω), 103 mm height, and M12×1.75 threaded interface support equipment integration.

Features & Applications

Specification status: Preliminary catalog specifications. Confirm all design-critical values with engineering before design freeze.

Technical Specifications

Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.

Application Fit

•Plastic Part Welding: Automotive interior components, dashboard assemblies
•Electronic Device Assembly: Battery pack welding, sensor housings
•Medical Device Manufacturing: Sterile container sealing, disposable device assembly
•Consumer Products: Appliance components, packaging closures
•Textile & Nonwoven: Filter media, protective garment seams
•Automotive Industry: Bumper welding, light housings, fluid containers

Features

✔High Power Output (1250W) – Delivers strong ultrasonic energy for demanding welding applications
✔Two listed resonance values – 20.15 kHz and 20.20 kHz
✔Low Impedance Design – ≤10 Ω ensures efficient energy transfer
✔Industrial-Grade Construction – Built for continuous operation in manufacturing environments
✔Quad Piezoelectric Elements – 4 elements provide balanced power distribution
✔Compact Form Factor – 103mm height fits standard welding equipment

Applications

•Plastic Part Welding: Automotive interior components, dashboard assemblies
•Electronic Device Assembly: Battery pack welding, sensor housings
•Medical Device Manufacturing: Sterile container sealing, disposable device assembly
•Consumer Products: Appliance components, packaging closures
•Textile & Nonwoven: Filter media, protective garment seams
•Automotive Industry: Bumper welding, light housings, fluid containers

Need Engineering Support for HJ-5020B?

Share generator frequency, horn stack geometry, mounting thread, power target, and operating duty to receive an RFQ-ready recommendation.

Engineering Tools and Supplier Resources

Estimate common PZT design parameters before sending an RFQ.

See material control, customization scope, and engineering support.

Review material grades and selection criteria.

Request Specifications & Pricing for HJ-5020B

Get detailed datasheets, OEM pricing, and lead time for the HJ-5020B. MOQ is project-specific and confirmed after the stack, interface, and validation scope are reviewed. Available documentation commonly includes impedance / resonance test data, outgoing QC records, and batch consistency reporting.

The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.

Key Specifications

Performance

Model	HJ-5020B
Resonance Frequency (two listed values)	20.15 / 20.20 kHz
Bandwidth (two listed values)	2.70 / 0.50 kHz
Static Capacitance	9670 pF
Impedance (Ø50 mm)	≤ 10 Ω
Impedance (Ø64 × 232 mm)	≤ 20 Ω
Insulated Impedance	≥ 100 MΩ
Number of Piezoelectric Elements	4

Mechanical

Piezoelectric Element Size	Ø50 × Ø20 × 7 mm
Height	103 mm
Threaded Interface	M12 × 1.75

Operating Limits

Maximum Diameter	Ø50 mm

Integration

Power Output	1250 W

Procurement

MOQ / Sample Policy	MOQ is project-specific and confirmed after the stack, interface, and validation scope are reviewed.PROJECT-SPECIFIC
Sample Lead Time	Sample availability and lead time are confirmed after stack dimensions, horn interface, and generator fit are reviewed.PROJECT-SPECIFIC
Production Lead Time	Production lead time is quoted after tooling, stack tuning, and quantity requirements are confirmed.PROJECT-SPECIFIC
Customization Scope	OEM changes commonly include thread interface, stack height, piezo configuration, tuned frequency window, and cable or terminal style.PROJECT-SPECIFIC
Available Documents & Reports	Available documentation commonly includes impedance / resonance test data, outgoing QC records, and batch consistency reporting.PROJECT-SPECIFIC
