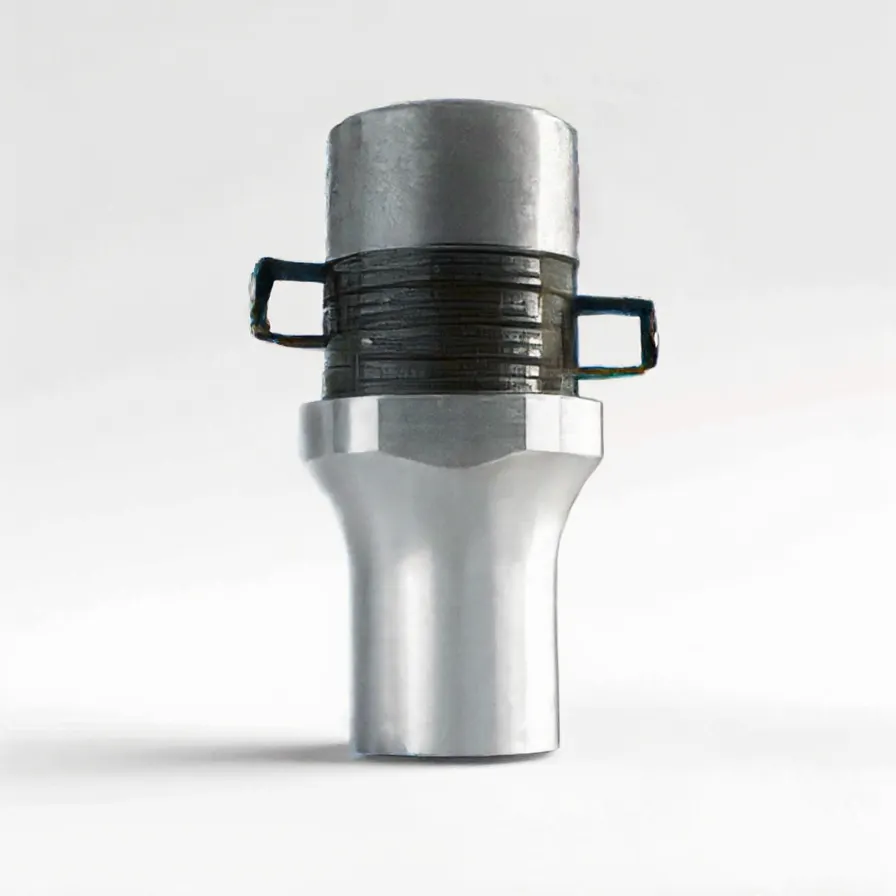

Ultrasonic Welding Transducer 20 kHz 1050W Power | HJ-5020D

The Yujie HJ-5020D is a powerful ultrasonic welding transducer operating at the standard 20.00 kHz industrial frequency, engineered for demanding manufacturing processes. With 1050W power output and high 14680 pF capacitance, it provides exceptional energy storage and delivery for consistent weld quality. The larger Ø64mm diameter offers improved thermal management for extended operation, while the precision 0.60 kHz bandwidth ensures repeatable results. Perfect for automotive, electronics, and appliance manufacturing where reliability and consistency are paramount.

Features & Applications

Specification status: Preliminary catalog specifications. Confirm all design-critical values with engineering before design freeze.

Technical Specifications

Available catalog specifications are shown below. Missing groups remain omitted instead of being filled with generic values; procurement entries are project-specific guidance.

Application Fit

•Automotive Parts Assembly: Door panels, instrument clusters, HVAC components
•Electronics Manufacturing: PCB assembly, connector welding, enclosure sealing
•Appliance Production: Refrigerator components, washing machine parts
•Packaging Industry: Blister packs, clamshell containers, tube sealing
•Toy Manufacturing: Plastic toy assembly, battery compartment sealing
•Industrial Components: Pipe fittings, valve bodies, filter housings

Features

✔Stable 20 kHz Operation – Standard industrial frequency for reliable welding performance
✔High Capacitance Design (14680 pF) – Enhanced energy storage for powerful ultrasonic output
✔Robust 1050W Power – Sufficient for medium to heavy-duty welding tasks
✔Larger Diameter (Ø64 mm) – Greater surface area for improved heat dissipation
✔Precision Bandwidth (0.60 kHz) – Tight frequency control for consistent results
✔Extended Height (116 mm) – Optimized for enhanced vibration amplitude

Applications

•Automotive Parts Assembly: Door panels, instrument clusters, HVAC components
•Electronics Manufacturing: PCB assembly, connector welding, enclosure sealing
•Appliance Production: Refrigerator components, washing machine parts
•Packaging Industry: Blister packs, clamshell containers, tube sealing
•Toy Manufacturing: Plastic toy assembly, battery compartment sealing
•Industrial Components: Pipe fittings, valve bodies, filter housings

Need Engineering Support for HJ-5020D?

Share generator frequency, horn stack geometry, mounting thread, power target, and operating duty to receive an RFQ-ready recommendation.

Engineering Tools and Supplier Resources

Estimate common PZT design parameters before sending an RFQ.

See material control, customization scope, and engineering support.

Review material grades and selection criteria.

Request Specifications & Pricing for HJ-5020D

Get detailed datasheets, OEM pricing, and lead time for the HJ-5020D. MOQ is project-specific and confirmed after the stack, interface, and validation scope are reviewed. Available documentation commonly includes impedance / resonance test data, outgoing QC records, and batch consistency reporting.

The email opens pre-filled with a short spec checklist — partial details are fine. Typical reply within one business day.

Key Specifications

Performance

Model	HJ-5020D
Resonance Frequency	20.00 kHz
Bandwidth	0.60 kHz
Static Capacitance	14680 pF
Impedance	≤ 25 Ω
Insulated Impedance	≥ 100 MΩ
Number of Piezoelectric Elements	4

Mechanical

Piezoelectric Element Size	Ø50 × Ø20 × 6 mm
Height	116 mm
Threaded Interface	M12 × 1.75

Operating Limits

Maximum Diameter	Ø64 mm

Integration

Power Output	1050 W

Procurement

MOQ / Sample Policy	MOQ is project-specific and confirmed after the stack, interface, and validation scope are reviewed.PROJECT-SPECIFIC
Sample Lead Time	Sample availability and lead time are confirmed after stack dimensions, horn interface, and generator fit are reviewed.PROJECT-SPECIFIC
Production Lead Time	Production lead time is quoted after tooling, stack tuning, and quantity requirements are confirmed.PROJECT-SPECIFIC
Customization Scope	OEM changes commonly include thread interface, stack height, piezo configuration, tuned frequency window, and cable or terminal style.PROJECT-SPECIFIC
Available Documents & Reports	Available documentation commonly includes impedance / resonance test data, outgoing QC records, and batch consistency reporting.PROJECT-SPECIFIC
